Installation:

• Set up external dental devices, including the water supply and air supply systems.
• Ensure the water pressure is between 0.7bar to 2.2bar and adjust the air supply pressure to 3.5bar to 4.5bar.
• Connect the Dental Air Polisher securely to the handpiece pipeline.

Powder Loading:

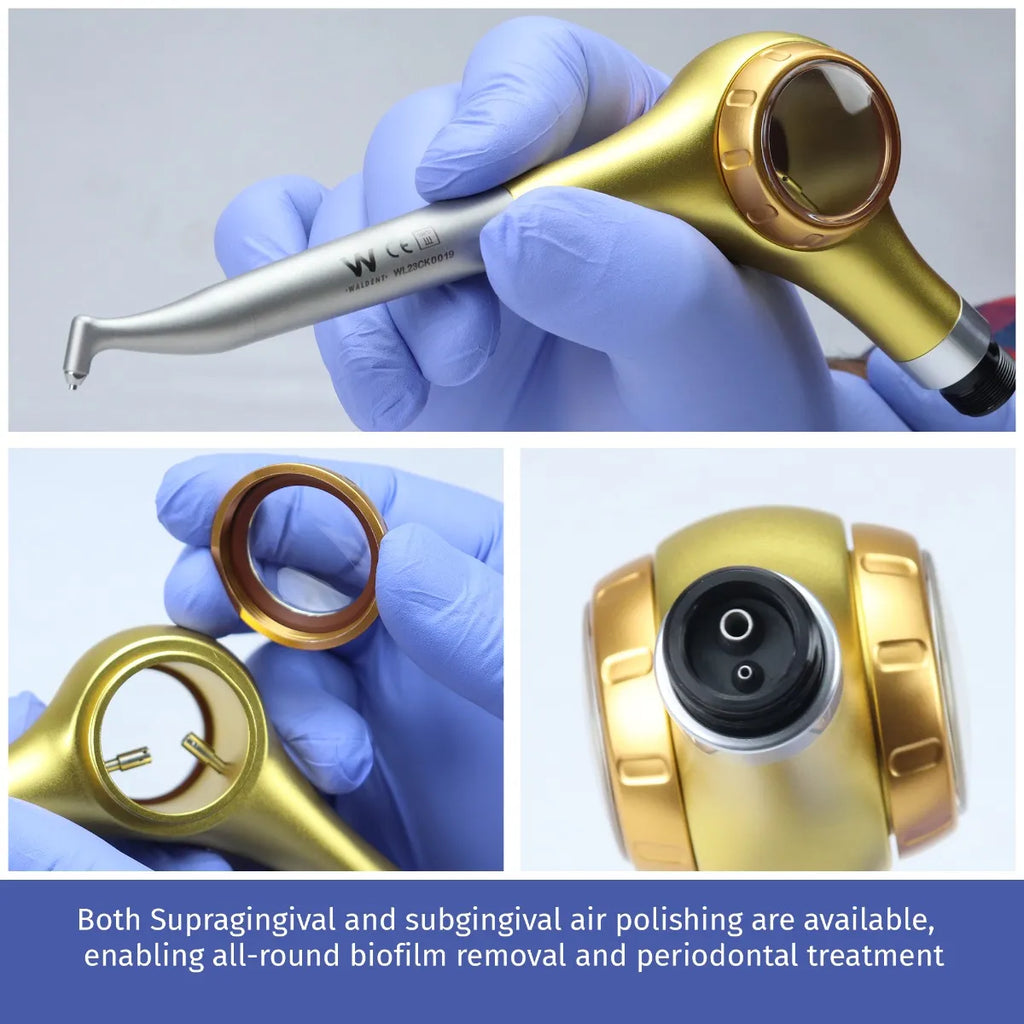

• After connecting the Dental Air Polisher, unscrew the powder storage chamber cover.
• Add the recommended amount of powder into the chamber.
• Clear any powder residues at the thread position and tighten the cover.

Product Operation:

• Before treating the patient, spray the oral cavity for 1-3 seconds to ensure even air and water spray.
• Hold the handpiece in a pen-holding position.
• Maintain a distance of 3-5mm between the spray head air outlet and the tooth surface during air polishing.
• Follow recommended angles (30-60 degrees) for air polishing direction.

Maintenance:

• Clear powder residues regularly.
• Open the powder storage chamber cover to clear the remaining powder.
• Blow off powder in the chamber with air.
• Wipe off powder residues on the device's surface with alcohol cotton or a dry towel.

Cleaning and Disinfection:

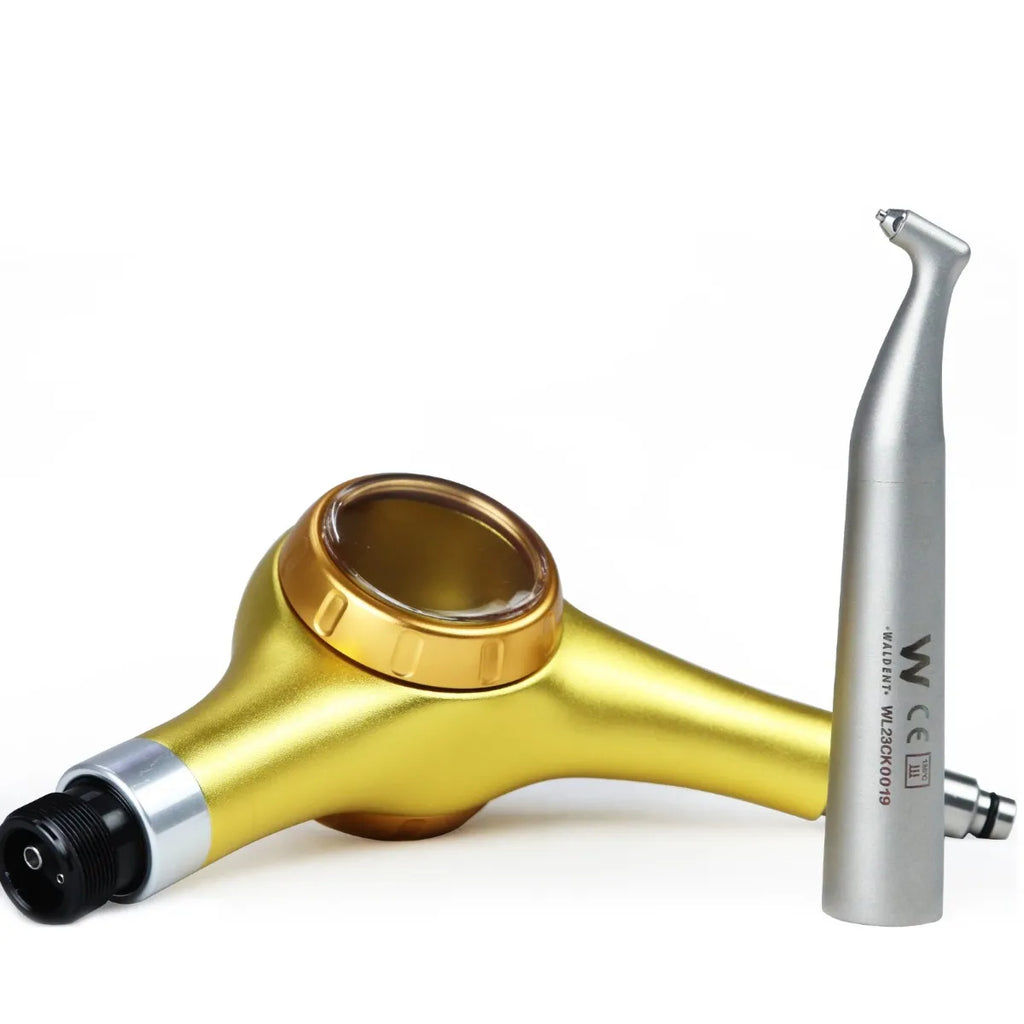

• Remove the handpiece from the Dental Air Polisher.
• Scrub the handpiece and spray head with a soft brush and rinse with pure water.
• Use a CE-certified detergent for cleaning.
• Follow specific procedures for automatic cleaning and avoid ultrasonic cleaning.

Sterilization:

• Sterilize only the handpiece and spray head using steam sterilization procedures.
• Ensure the sterilization temperature does not exceed 138°C.

Usage Precautions:

• Adhere to precautions regarding patient conditions, such as hemophilia, heart pacemakers, and respiratory diseases.
• Regularly check the handpiece for cracks or deformities.
