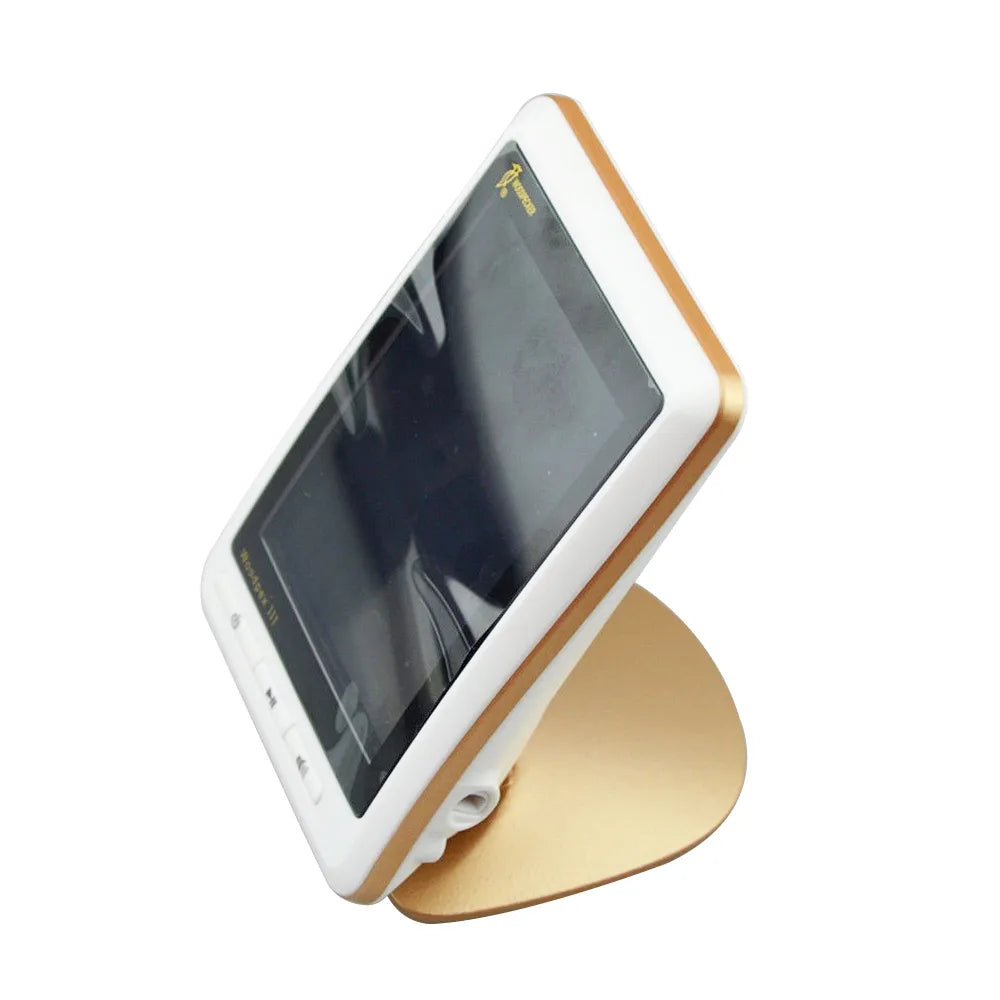

  • Woodpecker Apex Locator Woodpex III gold edition unit
  • Woodpecker Woodpex III packaging box
  • Woodpecker Apex Locator Woodpex III gold edition front view
  • Woodpecker Apex Locator Woodpex III gold edition top view
  • Woodpecker Woodpex III apex locator complete set
Woodpecker Apex Locator Woodpex III

Accurate Root Canal Apex Locator

4.2
(155)
Rs. 8,498.00 Rs. 28,620.00
Taxes included. Shipping calculated at checkout.

What's Inside

1 items
FREE Delivery
Jun 28 - Jul 03
Order within
-- h : -- m

HUMAN SKIN LIKE

Same day Shipping

READY TO USE

Beginer Friendly
Key Specifications

Battery: 3.7V/750mAh
Adapter: 100V - 240V 501-Iz/60Hz
Power consumption: 50.5W
Screen: 4.5" LCD
Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex
Environment temperature: +5°C to +40:C
Relative humidity: 580%
Atmosphere pressure: 50kPa to 106kPa
Main unit net weight: 336g
Main unit gross weight: 360g Unit
Dimension: 195mm x 137mm x 123mm
Direction To Use

Preparation:

  • Ensure the device is fully charged before use.
  • Autoclave reusable accessories (measuring wire, file clip, lip hook) for hygiene.

Powering On the Device:

  • Press the power button on the main unit to turn on the Woodpex III Gold.

Setting up the Measurement File:

  • Attach the measuring file to the file clip securely.
  • Connect the measuring wire to the file clip.

Locating the Apex:

  • Isolate the tooth with a dental dam.
  • Apply conductive gel to the measuring file's tip.
  • Gently insert the measuring file into the root canal until resistance is felt.
  • Advance the measuring file slowly while observing the LCD screen.

Interpreting the Measurement:

  • Pay attention to the length measurement indicator and color display.
  • Adjust file position based on displayed colors.

Alert Function:

  • Be cautious when the buzzer alert sounds (file less than 2mm from the apex).

Powering Off the Device:

  • Press and hold the power button to shut down the Woodpex III Gold.

Cleaning and Storage:

  • Clean accessories with a disinfectant solution after each use.
  • Store the device in a clean and dry environment.

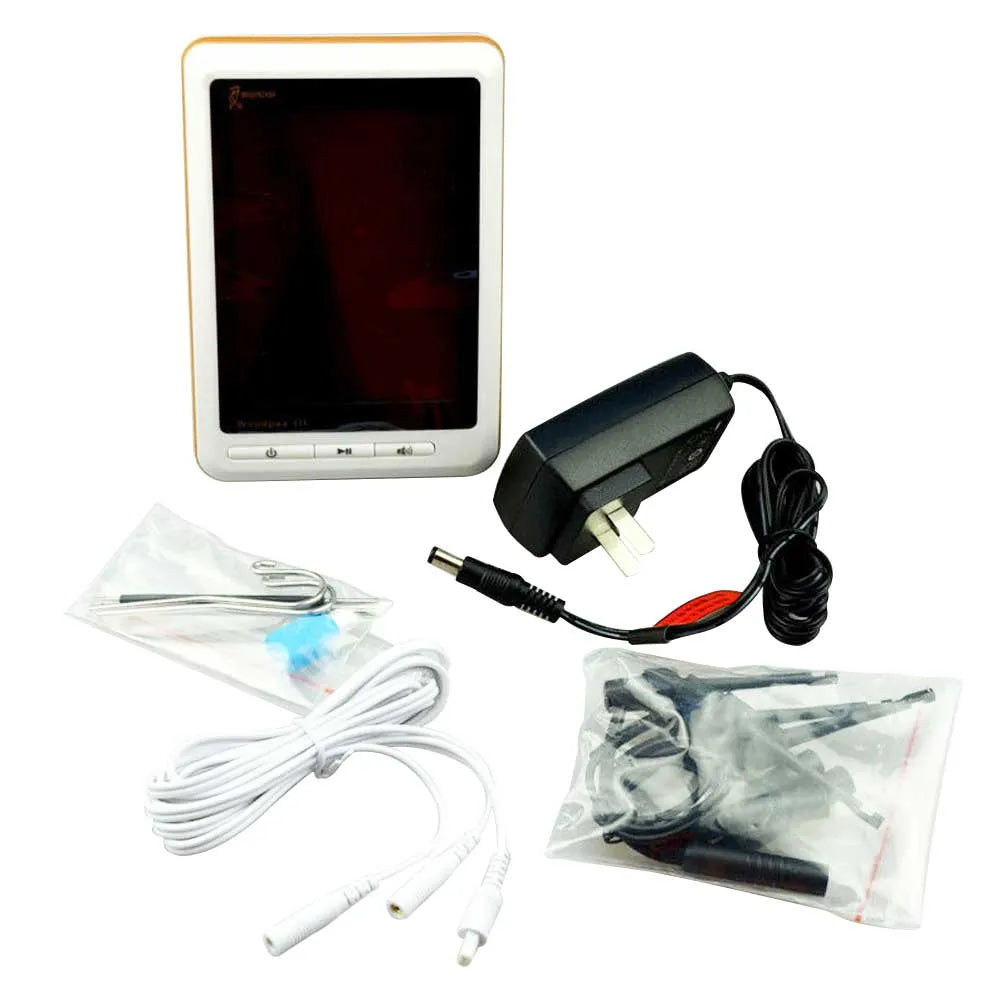

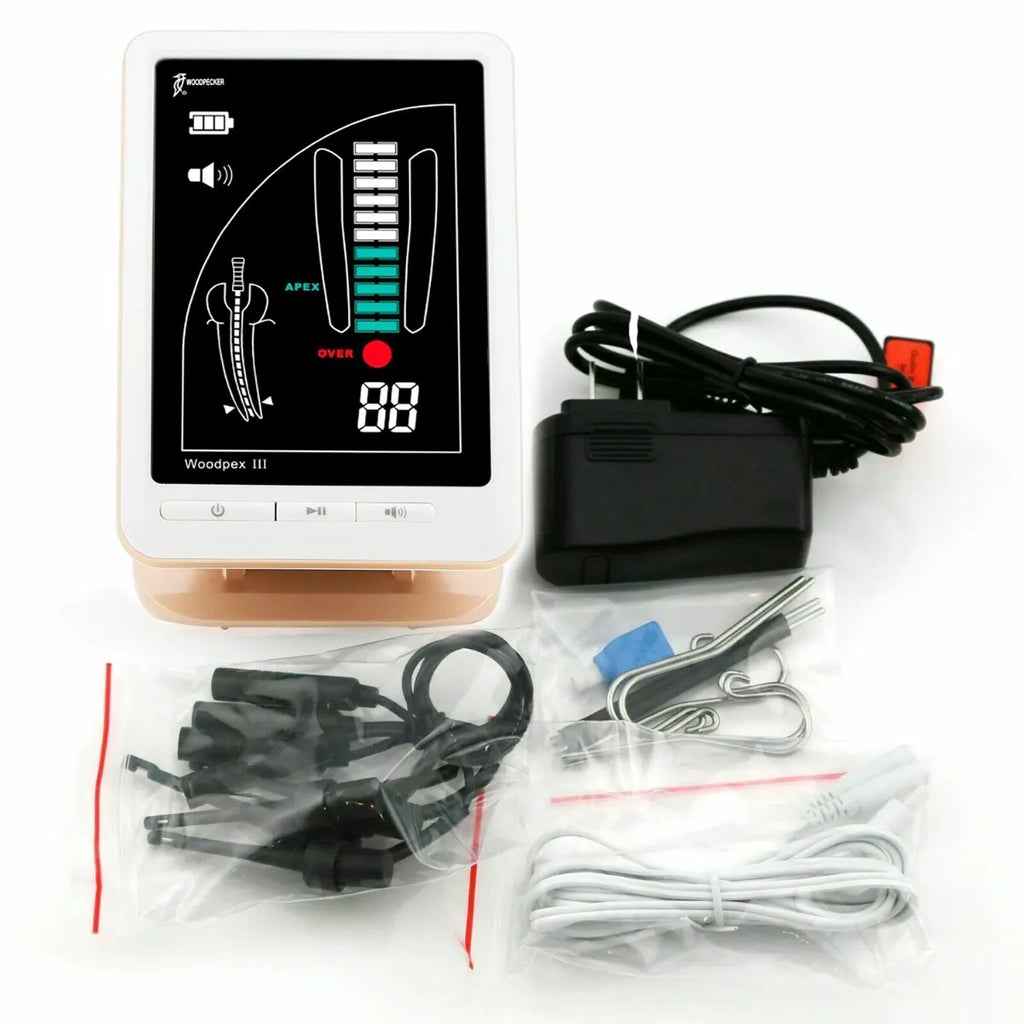

Packaging
{"type":"root","children":[{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"1 X Main Unit"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Measuring Wire"}]},{"type":"list-item","children":[{"type":"text","value":"2 X File Clip"}]},{"type":"list-item","children":[{"type":"text","value":"2 X Lip Hook"}]},{"type":"list-item","children":[{"type":"text","value":"2 X Measuring File"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Adapter"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Tester"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Battery"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Instruction Manual"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Qualified Certificate"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Warranty Card"}]},{"type":"list-item","children":[{"type":"text","value":"1 X Packing List"}]}]}]}
Additional Info

Country of Origin: PRC
Manufacturer: Woodpecker

Payment Options

COD
Net Banking
UPI
Wallet
Cards
EMI

AeDental Benefits

Free
Shipping
Hassle Free
Cancellation
10 Days
Replacement
100%
Genuine

Detail Title

Detail description goes here

Got Any Doubts?
What is the primary function of this apex locator?

This device uses multiple frequency network impedance measurement technology to accurately determine the position of a file within a root canal. It also features a buzzer that provides an alert when the endo file is less than 2mm from the apex.
How are the device's components sterilized?

To prevent cross-infection, the file clip, lip hook, and touch probe are autoclavable. This allows for effective sterilization between uses.
What type of battery does this unit use?

The unit is powered by a rechargeable 3.7V/750mAh battery, which eliminates the need for repeated battery replacements.
What are the main features of the display screen?

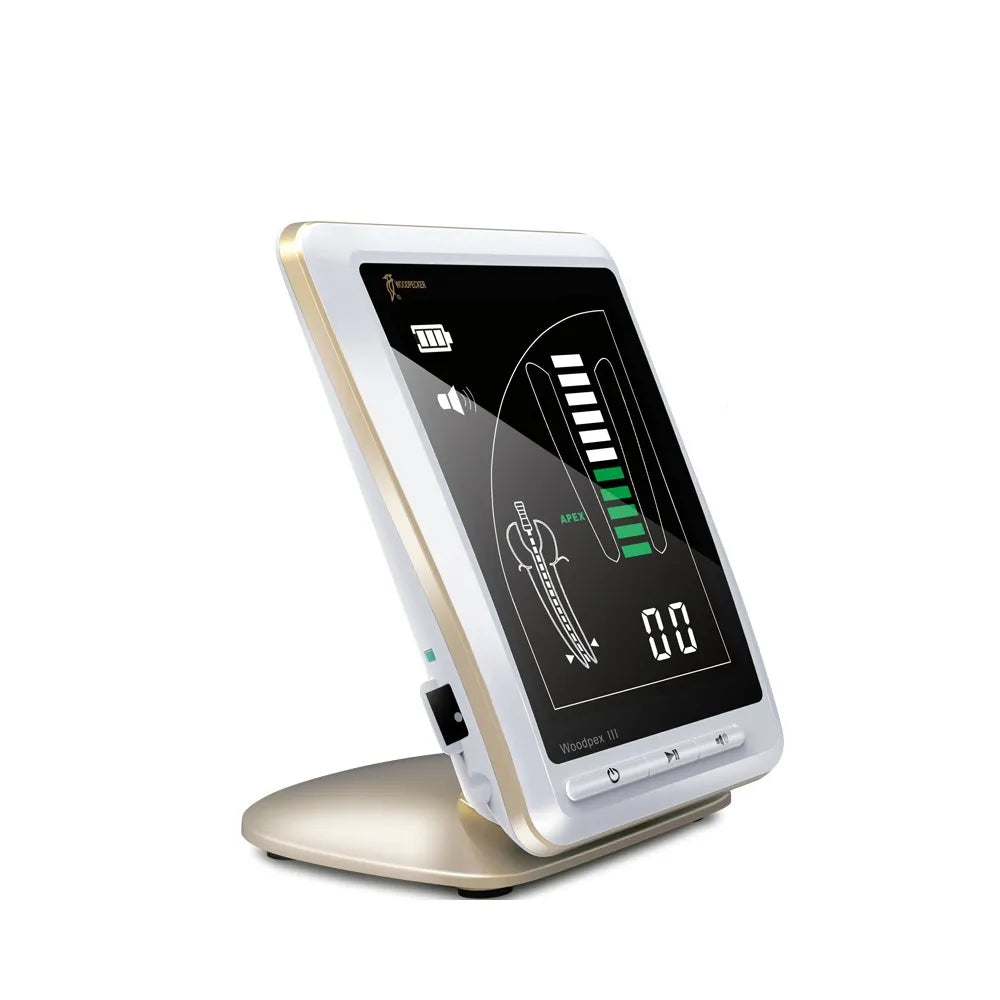

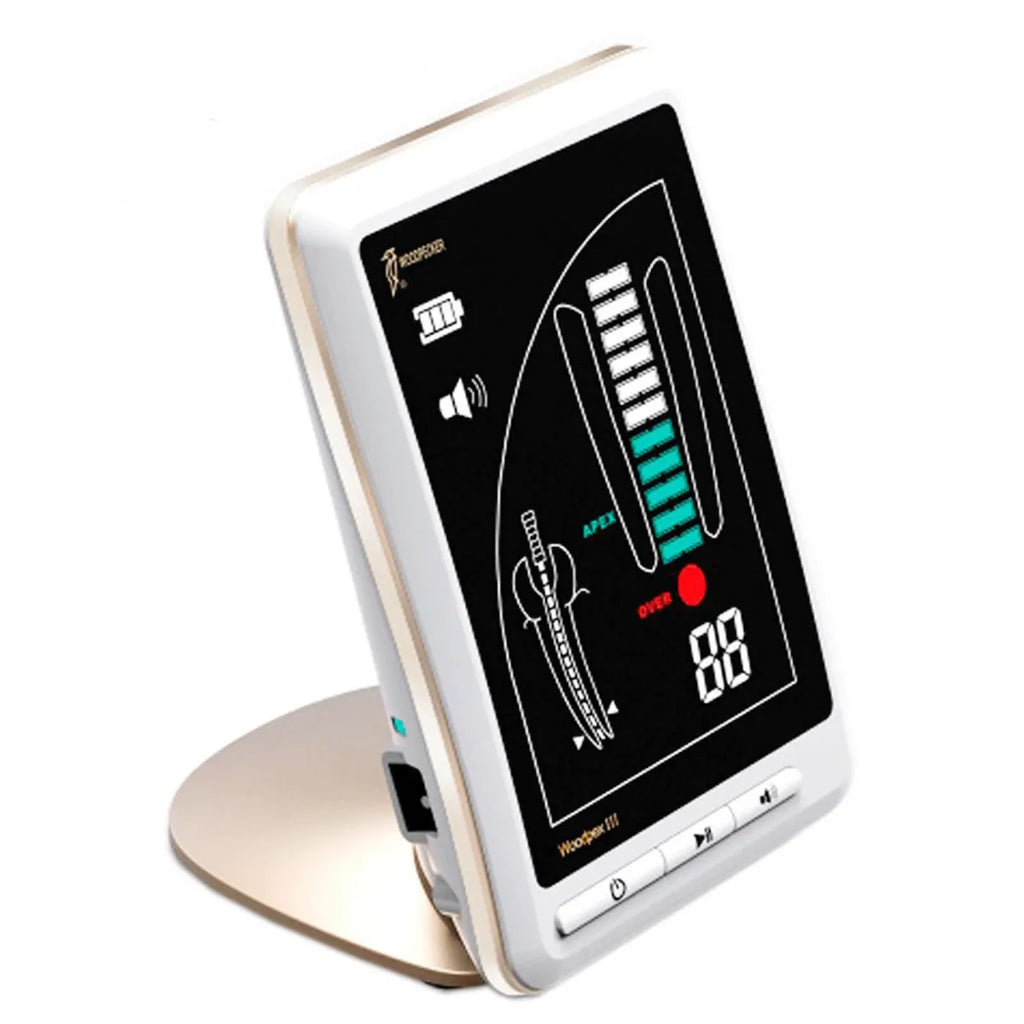

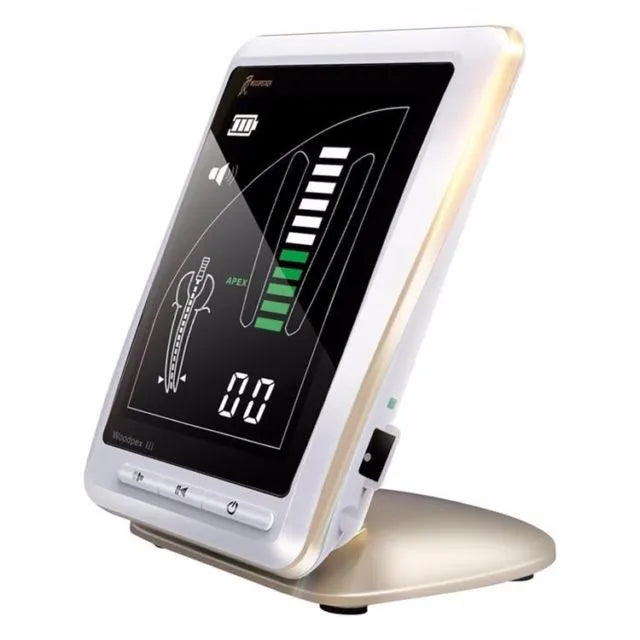

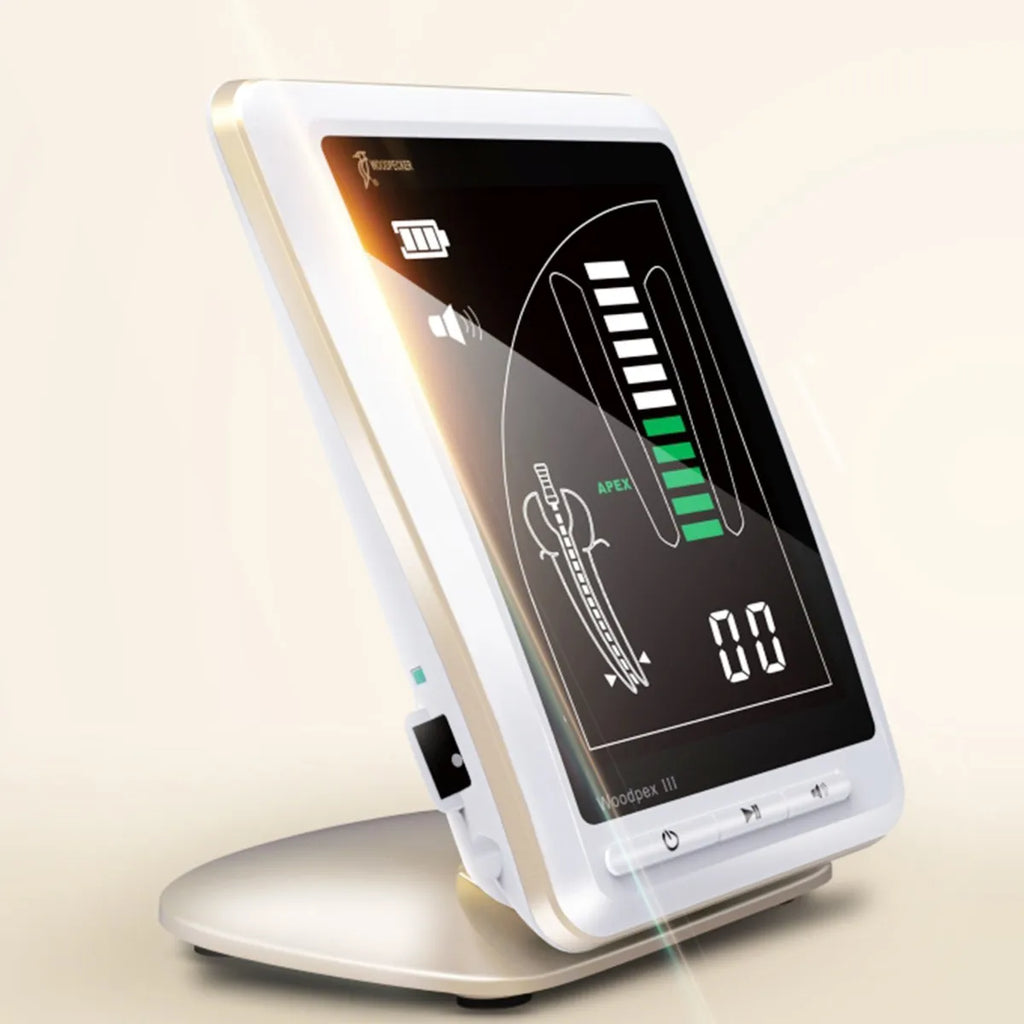

It is equipped with a 4.5-inch bright LCD that uses different colors to clearly show the file's trajectory. The unit is also folding, allowing for easy adjustment of the visual angle.
What are the recommended operating conditions for this device?

The recommended environment temperature for operation is from +5°C to +40°C. The atmosphere pressure should be between 50kPa and 106kPa.
