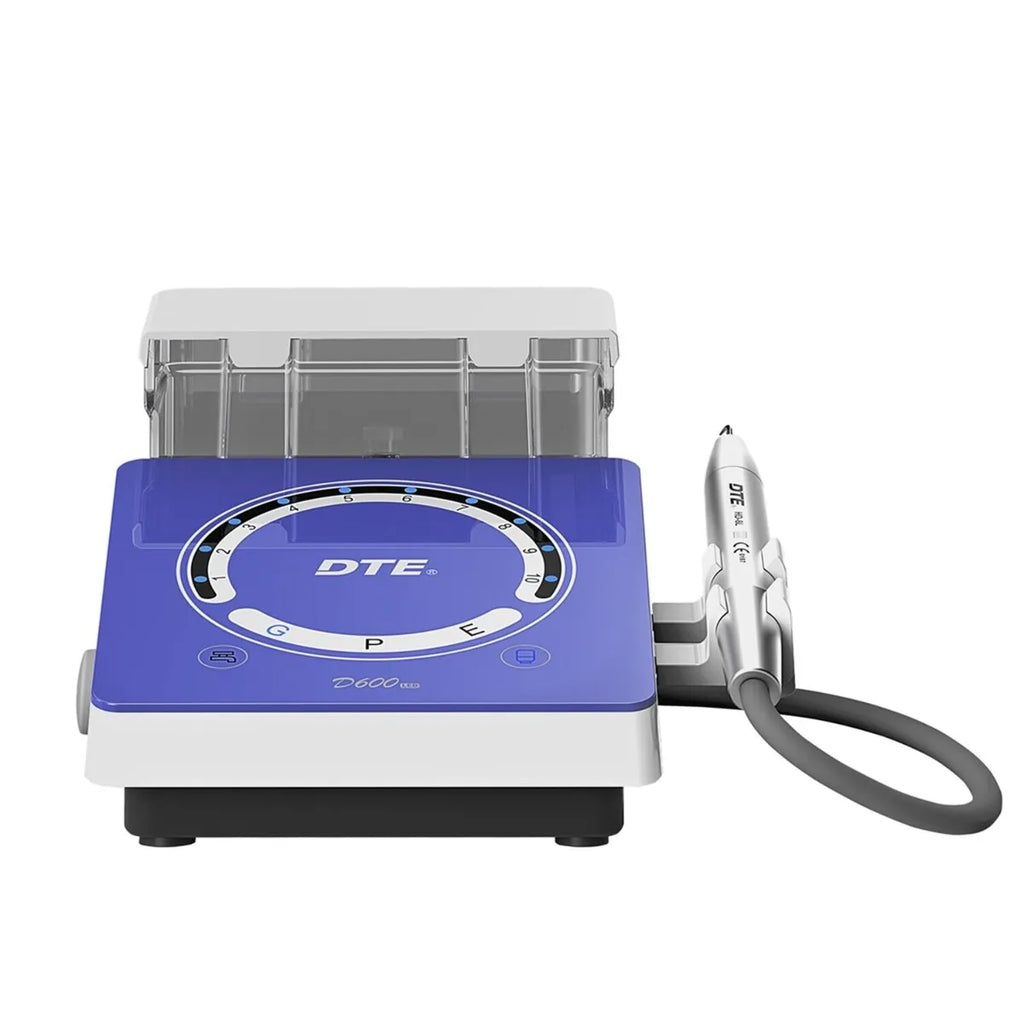

Woodpecker D600 LED Ultrasonic Scaler – main unit

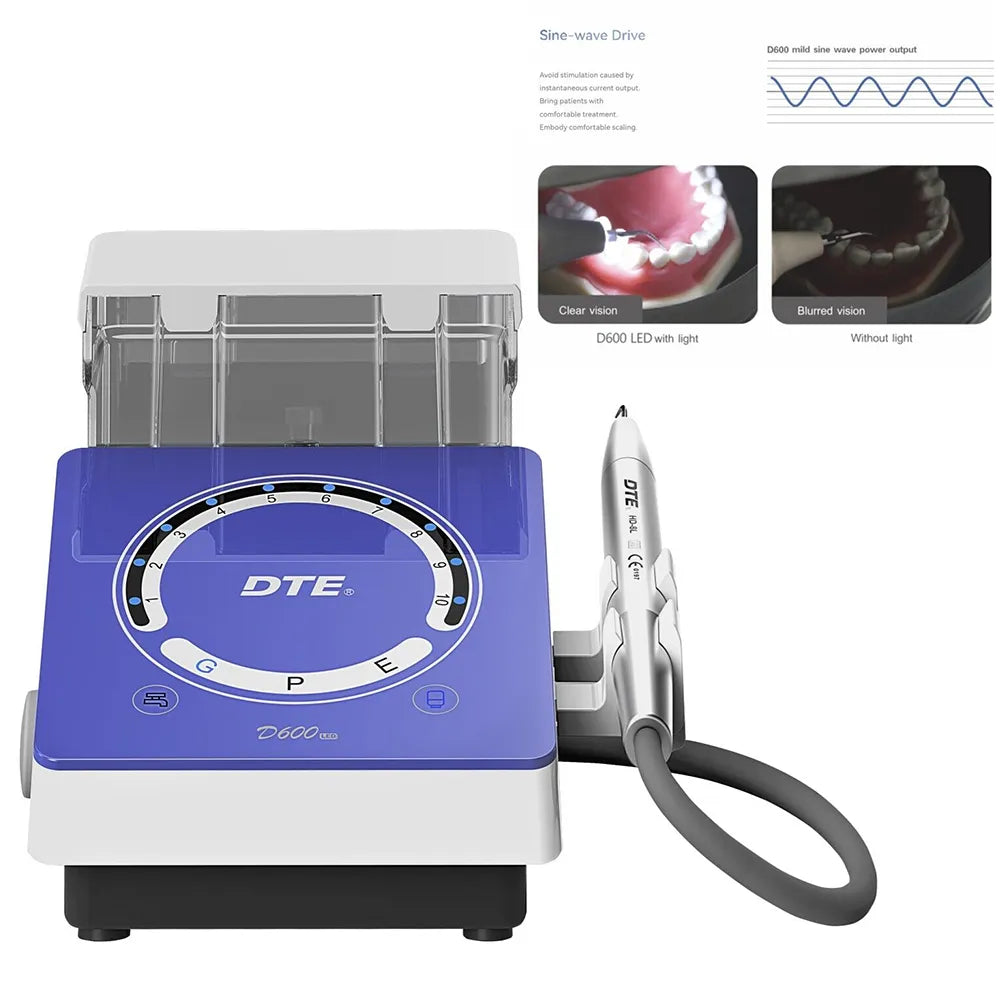

  • Woodpecker D600 LED Ultrasonic Scaler – main unit

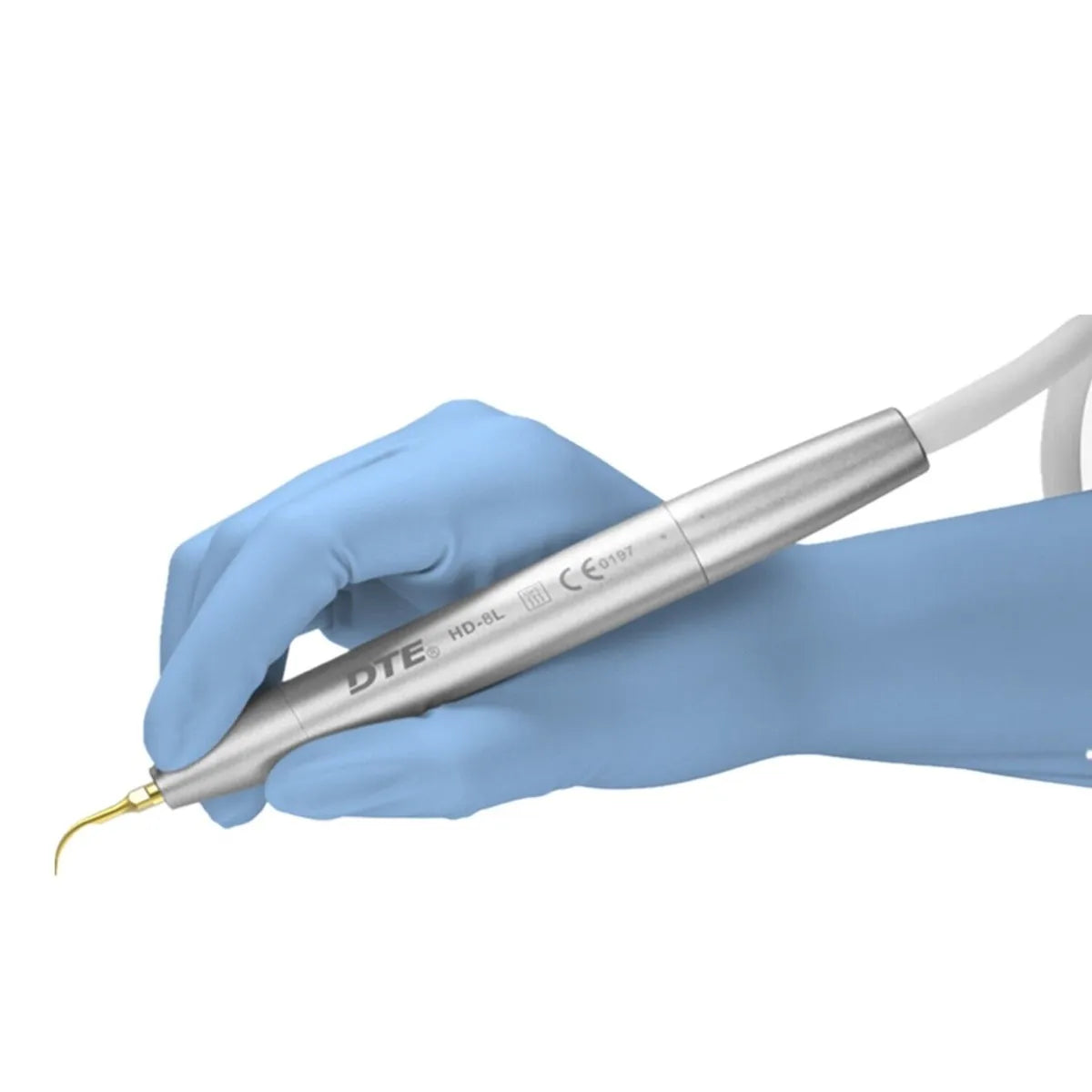

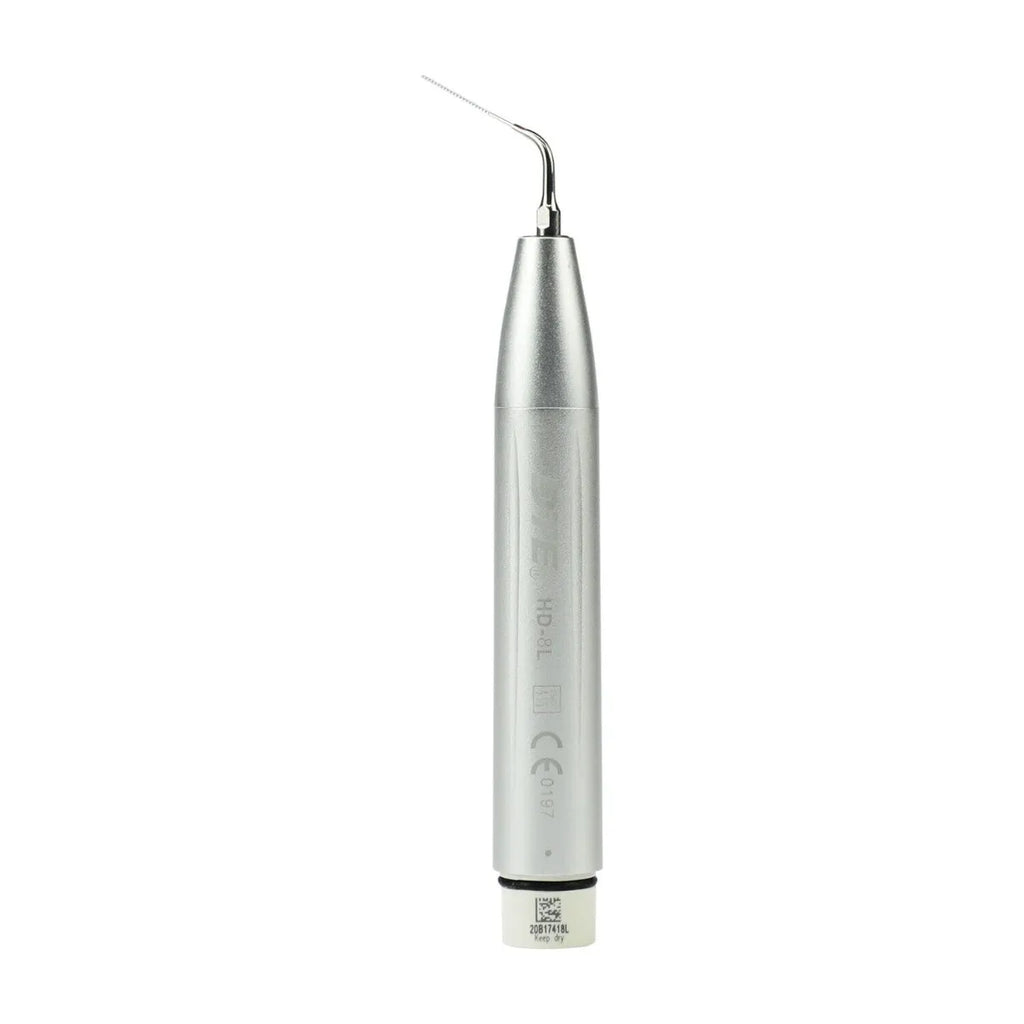

  • Woodpecker D600 LED Ultrasonic Scaler – LED handpiece
  • Woodpecker D600 LED Ultrasonic Scaler – scaling tips set
  • Woodpecker D600 LED Ultrasonic Scaler – foot switch
  • Woodpecker D600 LED Ultrasonic Scaler – torque wrench
  • Woodpecker D600 LED Ultrasonic Scaler – water bottle accessory
  • Woodpecker D600 LED Ultrasonic Scaler – sterilization box
  • Woodpecker D600 LED Ultrasonic Scaler – power adapter
  • Woodpecker D600 LED Ultrasonic Scaler – control panel detail
  • Woodpecker D600 LED Ultrasonic Scaler – full kit packaging
  • Woodpecker D600 LED Ultrasonic Scaler – tip set close-up
  • Woodpecker D600 LED Ultrasonic Scaler – in clinical use
  • Woodpecker D600 LED Ultrasonic Scaler – LED light close-up
  • Woodpecker D600 LED Ultrasonic Scaler – packaging box
Woodpecker D600 LED Ultrasonic Scaler

Digital Ultrasonic Scaler with LED Light

4.0
(231)
Rs. 29,999.00
Taxes included. Shipping calculated at checkout.

What's Inside

1 items
FREE Delivery
Jun 29 - Jul 04
Order within
-- h : -- m

HUMAN SKIN LIKE

Same day Shipping

READY TO USE

Beginer Friendly
Key Specifications

Main unit input: 220-240V~ 50Hz/60Hz 150mA
Output primary tip vibration excursion: ≤90μm
Output half-excursion force: <2N
Output tip vibration frequency: 28kHz±3kHz
Output power: 3W to 20W
Main unit fuse: T0.5AL 250V
Water pressure: 0.01MPa to 0.5MPa
Weight of the main unit: 1.8kg
Operating mode: Continuous operation
Type of protection against electric shock: class II equipment
Degree of protection against electric shock: Type BF applied part
Applied part of the equipment: handpiece and tip
Direction To Use
  • Preparation: Before use, check the unit and handpiece for any visible damage or defects. Make sure the scaler is properly connected to a power source and turned on.
  • Tip selection: Select the appropriate tip for the procedure and attach it to the handpiece. The scaler comes with a range of tips suitable for different procedures, such as supragingival scaling, subgingival scaling, and implant maintenance. Make sure the tip is securely fastened to the handpiece before use.
  • Power and water adjustments: Adjust the power setting to the desired level using the power adjustment knob. The scaler has a range of power settings from low to high. Adjust the water flow rate to the appropriate level using the water adjustment knob. The water flow rate can be adjusted to suit patient comfort and the specific procedure.
  • Positioning and angulation: Place the tip of the scaler against the tooth surface, angling it at a 45-degree angle towards the gum line. Apply moderate pressure and use a back-and-forth motion to remove plaque, tartar, or stains. Avoid using excessive pressure or angling the tip too aggressively, as this can cause discomfort or damage to the tooth surface.
  • Water spray function: Use the water spray function to rinse the tip and flush away debris from the teeth. The scaler has a water spray function that can be activated by pressing the water control button on the handpiece.
  • Moving on to the next tooth: Move on to the next tooth and repeat the process until all teeth have been cleaned. When moving to a new tooth, adjust the angle and position of the tip accordingly.
  • Completion of procedure: Once the procedure is complete, turn off the scaler and detach the tip from the handpiece.
Packaging
{"type":"root","children":[{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"1 x Main unit"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Detachable handpiece"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Power cord"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Footswitch"}]},{"type":"list-item","children":[{"type":"text","value":"7 x Scaling tip GD4,GD12,PD1,PD3,PD8,ED62,ED60"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Torque wrench"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Endo wrench"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Water pipe"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Quick-connector for Water"}]},{"type":"list-item","children":[{"type":"text","value":"6 x Waterproof \"O\" ring 6pc"}]},{"type":"list-item","children":[{"type":"text","value":"10 x Bottle sealed ring"}]},{"type":"list-item","children":[{"type":"text","value":"3 x Handpiece lock ring"}]},{"type":"list-item","children":[{"type":"text","value":"1 x 700 mL water tank"}]},{"type":"list-item","children":[{"type":"text","value":"1 x lnstruction manual"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Warranty card 1"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Packing list"}]}]}]}
Additional Info

Country of Origin: PRC
Manufacturer: Woodpecker

Payment Options

COD
Net Banking
UPI
Wallet
Cards
EMI

AeDental Benefits

Free
Shipping
Hassle Free
Cancellation
10 Days
Replacement
100%
Genuine

Detail Title

Detail description goes here

Got Any Doubts?
What clinical procedures is this ultrasonic scaler designed for?

This device has automatic functions suitable for scaling, periodontic (perio), and endodontic (endo) procedures.
Does the handpiece have an integrated light source?

Yes, the unit features a detachable handpiece that is equipped with an LED light for improved visibility during use.
How are the settings and functions controlled?

The device features a smart touch panel and digital controls for precise adjustments. It also includes a multi-functional foot switch for operation.
What is the operating frequency and output power of the tip?

The output tip vibration frequency is 28kHz ± 3kHz. The output power ranges from 3W to 20W.
Does this unit require an external water connection?

This scaler has a built-in automatic water supply system. It requires a water pressure between 0.01MPa and 0.5MPa for operation.
