Woodpecker DTE D3 LED Ultrasonic Scaler with 5 Tips

Efficiently removes calculus and dental plaque.

4.3
(179)
Rs. 19,000.00
Taxes included. Shipping calculated at checkout.

What's Inside

1 items
FREE Delivery
Jul 17 - Jul 22
Order within
-- h : -- m

HUMAN SKIN LIKE

Same day Shipping

READY TO USE

Beginer Friendly
Key Specifications

Technical parameter:
Works on 2 modes: General & Perio
Automatic frequency tracking

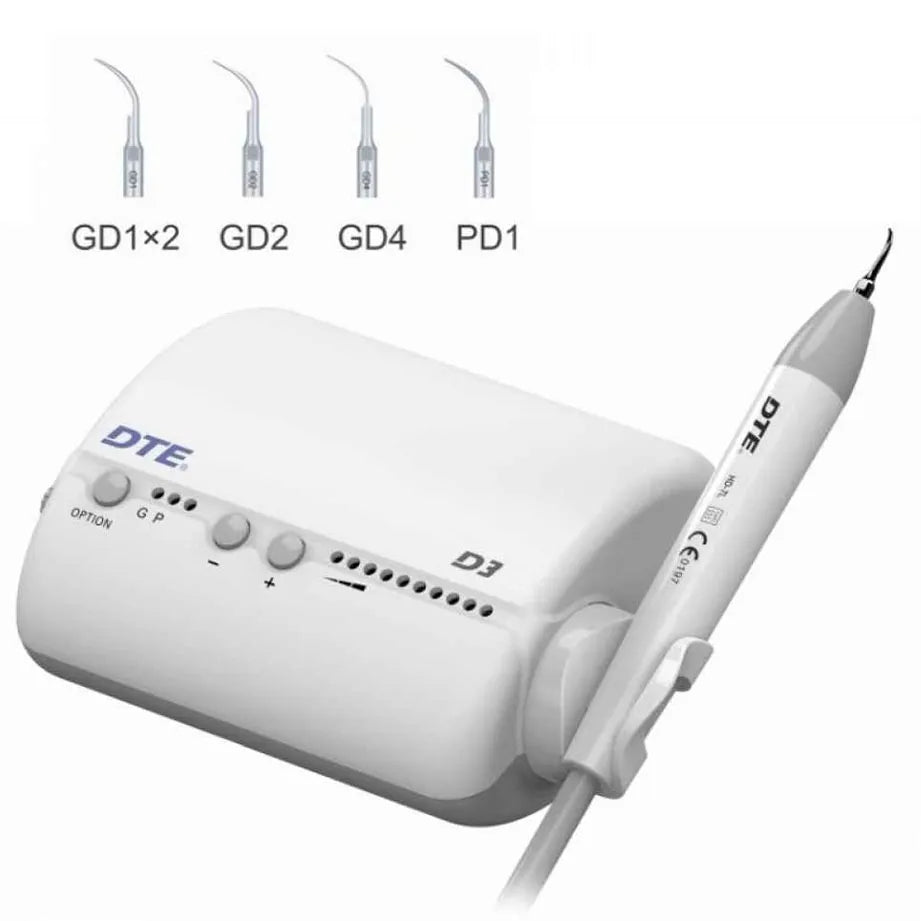

With 5 Tips (GD1 x 2, GD2, GD4, PD1)
Main unit input: 24V-50Hz/60Hz 1.3A
Power input : 100V to 240V~ 50Hz/60Hz 1.2A (Max)
Output power: 3W to 20W
Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
Frequency : 28kHz + 3kHz
Dimension : 196 mm X 134 mm X 80 mm
Main unit weight: 1kg
Direction To Use
  • Ensure the device is properly connected to a power source and the handpiece is securely attached.
  • Select the desired mode of operation (general & perio) using the control panel.
  • Adjust the power level according to the specific dental procedure and patient's comfort.
  • Apply a suitable amount of water or dental solution to the treatment area to ensure proper cooling and lubrication.
  • Gently guide the scaler tip along the tooth surface, maintaining light and controlled pressure.
  • Use a sweeping motion to remove plaque, tartar, or stains, moving from the gum line towards the tooth crown.
  • Pay attention to sensitive areas and adjust the power level or technique accordingly for patient comfort.
  • Periodically rinse the treatment area to remove debris and monitor the progress of the procedure.
  • After completing the treatment, switch off the device and disconnect the handpiece.
  • Clean and disinfect the handpiece according to the manufacturer's instructions, ensuring proper sterilization for future use.
Packaging
{"type":"root","children":[{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"1 x Main unit"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Detachable handpiece"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Adapter of power supply"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Footswitch"}]},{"type":"list-item","children":[{"type":"text","value":"5 x Scaling tips"}]},{"type":"list-item","children":[{"type":"text","value":"1x Torque Wrench"}]},{"type":"list-item","children":[{"type":"text","value":"1x Waterpipe"}]},{"type":"list-item","children":[{"type":"text","value":"4x Waterproof “O” ring"}]},{"type":"list-item","children":[{"type":"text","value":"1x Qualified certificate"}]},{"type":"list-item","children":[{"type":"text","value":"1x Packing list"}]},{"type":"list-item","children":[{"type":"text","value":"1x Instruction manual"}]},{"type":"list-item","children":[{"type":"text","value":"1x Warranty card"}]}]}]}
Additional Info

Country of Origin: PRC
Manufacturer: Woodpecker

Payment Options

COD
Net Banking
UPI
Wallet
Cards
EMI

AeDental Benefits

Free
Shipping
Hassle Free
Cancellation
10 Days
Replacement
100%
Genuine

Detail Title

Detail description goes here

Got Any Doubts?
What are the clinical applications for this ultrasonic scaler?

This device is multi-functional and can be used for scaling, periodontal, and endodontic procedures. It is designed to eliminate dental calculus, bacterial plaque, and tea stains without harming the gum or enamel.
How should the handpiece be sterilized?

The handpiece is detachable and can be sterilized in an autoclave. It is designed to withstand a high temperature of 134℃ and high pressure of 0.22MPa to prevent cross-infection.
What operating modes are available on this device?

This scaler works on two distinct modes for different clinical needs. The available modes are a General mode and a Perio mode.
What is the required water pressure for operation?

The device requires a water pressure between 0.1 bar and 5 bar for proper operation. This corresponds to a range of 0.01 MPa to 0.5 MPa.
What is the operating frequency of this scaler?

The unit operates at a frequency of 28kHz with a deviation of ±3kHz. It also features an automatic frequency tracking system to ensure steady performance.
