Preparation:

• Ensure that the device is fully charged or connected to a power source.
• Attach the wireless 6:1 super mini contra-angle handpiece to the motor unit securely.

Powering On:

• Press the power button located on the Endopace Pro motor unit to turn it on.
• The device will initiate and display the available working modes on the screen.

Selecting the Working Mode:

• Use the mode selection buttons on the motor unit to choose the desired working mode:
• Forward Rotation Mode: Enables rotation of the file in a single forward direction.
• Reverse Rotation Mode: Enables rotation of the file in a single reverse direction.
• Reciprocating Mode: Enables back-and-forth reciprocating motion of the file.
• ATR Mode: Activates the unique Auto Torque Reverse mode for file reciprocation at a set angle.

Adjusting the Reciprocating Angle:

• If using the reciprocating mode or ATR mode, adjust the reciprocating angle as needed.
• Use the angle adjustment buttons on the motor unit to set the desired angle within the 20-340 degree range.

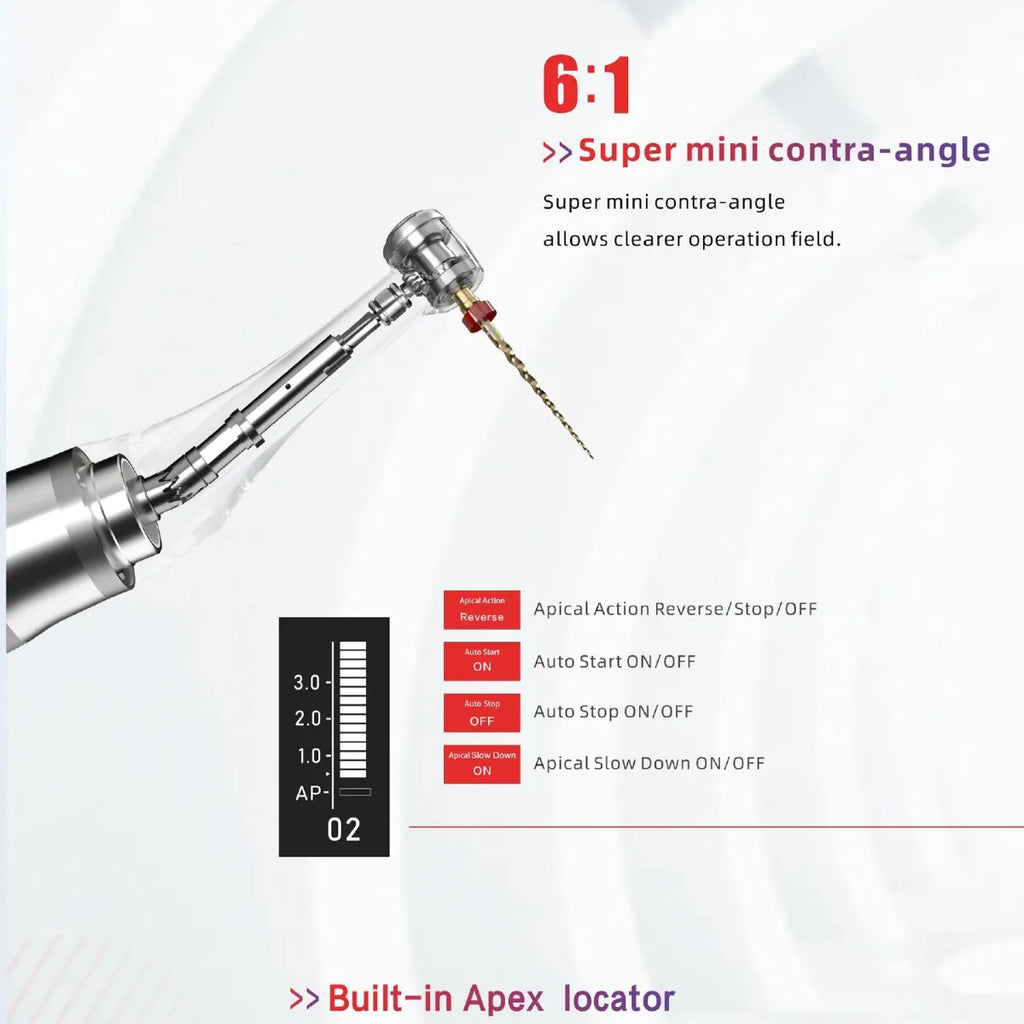

Apex Localization:

• If determining the apex length, make sure the apex locator feature is activated.
• Follow the instructions provided by the manufacturer for apex localization.
• The inbuilt apex locator will assist in accurately determining the length for more precise treatment.

Performing the Procedure:

• Sterilize the contra-angle handpiece and file before use according to standard protocols.
• Position the contra-angle handpiece in the patient's mouth and guide the file into the root canal.
• Maintain a steady and controlled grip on the contra-angle handpiece during the procedure.
• Monitor the device's screen for real-time information, including torque, speed, and length (if applicable).
• Follow proper endodontic techniques and protocols while utilizing the Endopace Pro.

Powering Off:

• After completing the procedure, press and hold the power button on the motor unit to turn it off.
• Disconnect the contra-angle handpiece from the motor unit.
• Clean and disinfect the contra angle handpiece and file thoroughly before storage.
