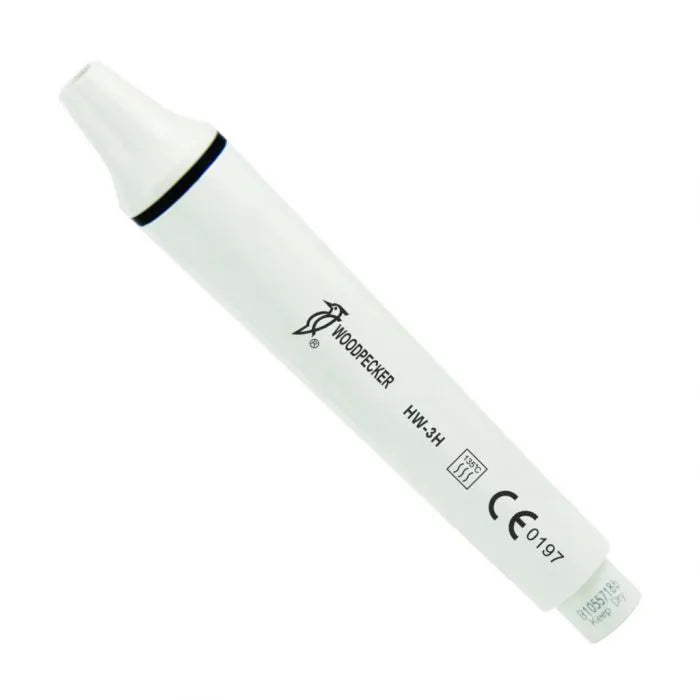

Woodpecker HW-3H Scaler Handpiece
  • Woodpecker HW-3H Scaler Handpiece
  • Woodpecker HW-3H Scaler Handpiece
  • Woodpecker HW-3H Scaler Handpiece
  • Woodpecker HW-3H Scaler Handpiece
  • Woodpecker HW-3H Scaler Handpiece
Woodpecker HW-3H Scaler Handpiece

Detachable Handpiece for Dental Scaling

4.4
(147)
Rs. 3,999.00
Taxes included. Shipping calculated at checkout.
FREE Delivery
Jun 25 - Jun 30
Order within
-- h : -- m

HUMAN SKIN LIKE

Same day Shipping

READY TO USE

Beginer Friendly
Key Specifications

Model: HW-3H
Length - 11 7 m m
Diameter - 18mm
Weight - 47g
Output tip Vibration frequency -28kHz±3kHz
Water pressure - 0.01MPa ~0.5MPa
Direction To Use
  • Before installing the handpiece, ensure it is dry and properly connected to the cable.
  • Connect the handpiece to the scaler unit, adjusting water and vibration intensity to suitable levels.
  • Hold the handpiece in a pen-like grip during use.
  • Select the appropriate scaling tip and securely screw it onto the handpiece using the torque wrench.
  • Avoid vertical contact of the tip with teeth during treatment.
  • Do not exert excessive pressure on teeth or tip surfaces.
  • After completing the operation, run the machine with a water supply for 30 seconds to clean the handpiece and tip.
  • For endodontic function, securely fix the end chuckto the handpiece using the provided tools.
  • Carefully insert the ultrasonic file into the patient's root canal, adjusting power gradually as needed.
  • Sterilize the handpiece and endo chuck using the recommended autoclave settings after each use.
  • Store the equipment in a cool, dry, and ventilated place away from combustible or hazardous materials.
  • Follow local regulations for proper disposal or recycling of the equipment.
  • Clean and sterilize the handpiece after using it.
  • Autoclaved under high temperature, pressure, time: 134°C, 2.0bar~2.3bar (0.20MPa~0.23MPa), 4min;
  • Clear the cleaning liquid in the handpiece with three-way syringe before sterilisation.
Packaging
{"type":"root","children":[{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"1 x Woodpecker HW-3H Scaler Handpiece"}]},{"type":"list-item","children":[{"type":"text","value":"3 x Large O Rings"}]},{"type":"list-item","children":[{"type":"text","value":"6 x Small O Rings"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Manual "}]}]}]}
Additional Info

Country of Origin: Made in PRC

Payment Options

COD
Net Banking
UPI
Wallet
Cards
EMI

AeDental Benefits

Free
Shipping
Hassle Free
Cancellation
10 Days
Replacement
100%
Genuine

Detail Title

Detail description goes here

Got Any Doubts?
How can this handpiece be sterilized?

This handpiece is detachable and can be sterilized in an autoclave.
What is the vibration frequency of the handpiece tip?

The output tip vibration frequency is 28kHz ±3kHz.
What are the water pressure requirements for this device?

The required water pressure for operation is between 0.01MPa and 0.5MPa.
What are the physical dimensions and weight of the handpiece?

The handpiece has a length of 117 mm, a diameter of 18 mm, and weighs 47g.
What are the main features of this handpiece?

The main features include being detachable, autoclavable, and having an ergonomic design. It is also designed for wide compatibility.
