Power Setup:

• Ensure the power adapter is connected to a suitable power source (100-240V, 50/60Hz).
• Connect the power adapter to the i-Scan system's power input.

Image Plate Placement:

• Select the appropriate size (0-3) of the ultra-thin imaging plate for the desired tooth position.
• Gently insert the imaging plate into the patient's mouth, positioning it correctly for capturing the desired image.

Starting the Scan:

• Press the one-click start button or initiate the scan using the touchscreen interface.
• The system will begin capturing the image using its powerful processing capabilities.

Image Viewing and Processing:

• Once the scan is complete, the captured image will be displayed on the touchscreen interface.

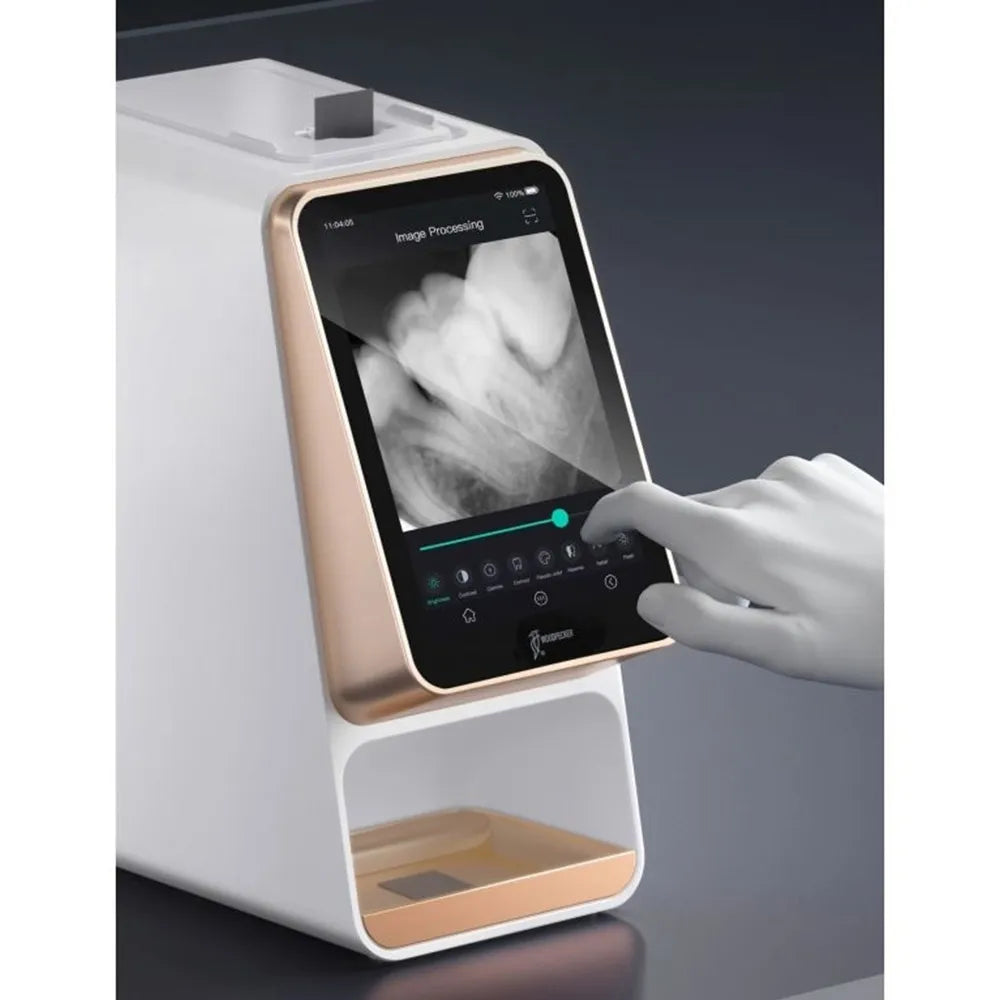

• Use the capacitive touch screen to navigate through different functions and options for image processing, adjustment, and analysis.
• Take advantage of intelligent image optimization features to enhance the quality and clarity of the image.

Data Management and Communication:

• Utilize the software's versatile functions for data management, including saving, organizing, and retrieving patient images and information.
• If desired, share the captured images with patients for improved doctor-patient communication and explanation of diagnoses and treatment plans.

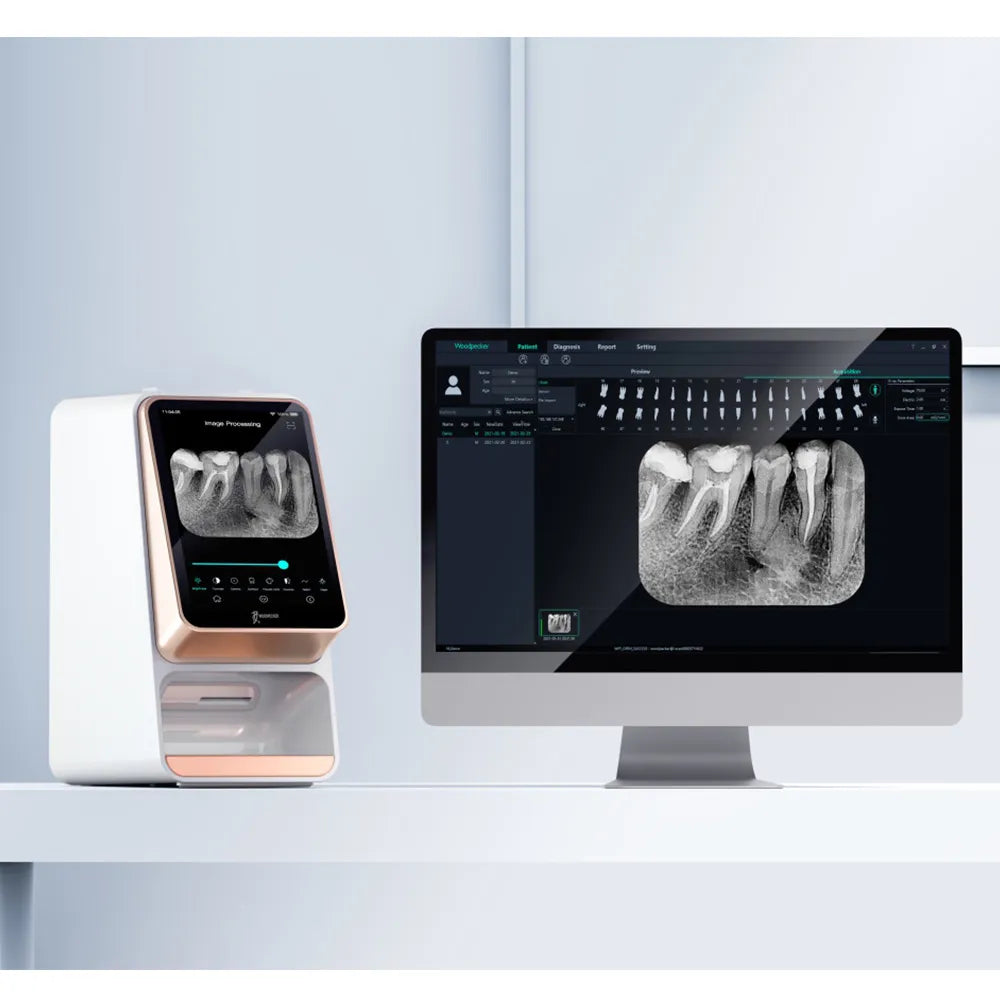

Terminal Viewing:

• If accessing the images from a mobile phone, tablet, or computer, ensure that the respective device is connected to the i-Scan system.
• Use the software or designated applications to view the images on the selected terminal device for remote diagnosis, consultation, or treatment planning.
