Key Specifications
Image Resolution: Ultra-high resolution for clear diagnostics
User Interface: High-quality, user-friendly interface
Design: Comfortable and ergonomic design
Scope of Application: Oral two-dimensional image capturing, case diagnosis, information management
Operation Mode: Intermittent operation mode
Electric Shock Protection: BF type applied part
Water Ingress Protection: IP68
X-ray Generator Compatibility: Compliant with dental X-ray machine standards
Power Adapter Input: 5V/USB interface
Mechanical Size - 1.5 : 43.5*29.2*4.5mm
Effective Area Size - 1.5 : 24*33mm( Size - 1.5)
Pixel Size: 20μm
Effective Resolution: > 12Ip/mm
Temperature: 10℃ to 35℃
Humidity: 20% to 90%
Atmospheric Pressure: 70kPa to 106kPa
Installation Application Specification:
Operating System: Windows® 7 or above
Processor: Intel® Core 4
Memory: 8 GB or above
Hard Disk: 500 GB or above
USB Port: 4 high-speed USB 2.0 ports
USB Chip: Intel or NEC / RENESAS
Display Resolution: 1920 x 1080
Software Installation: Run the "Ai-Dental setup.exe" installation program
Sensor Support Frame Installation: Fixed on flat wall with two screws, Secure sensor on support frame when not in use
Direction To Use

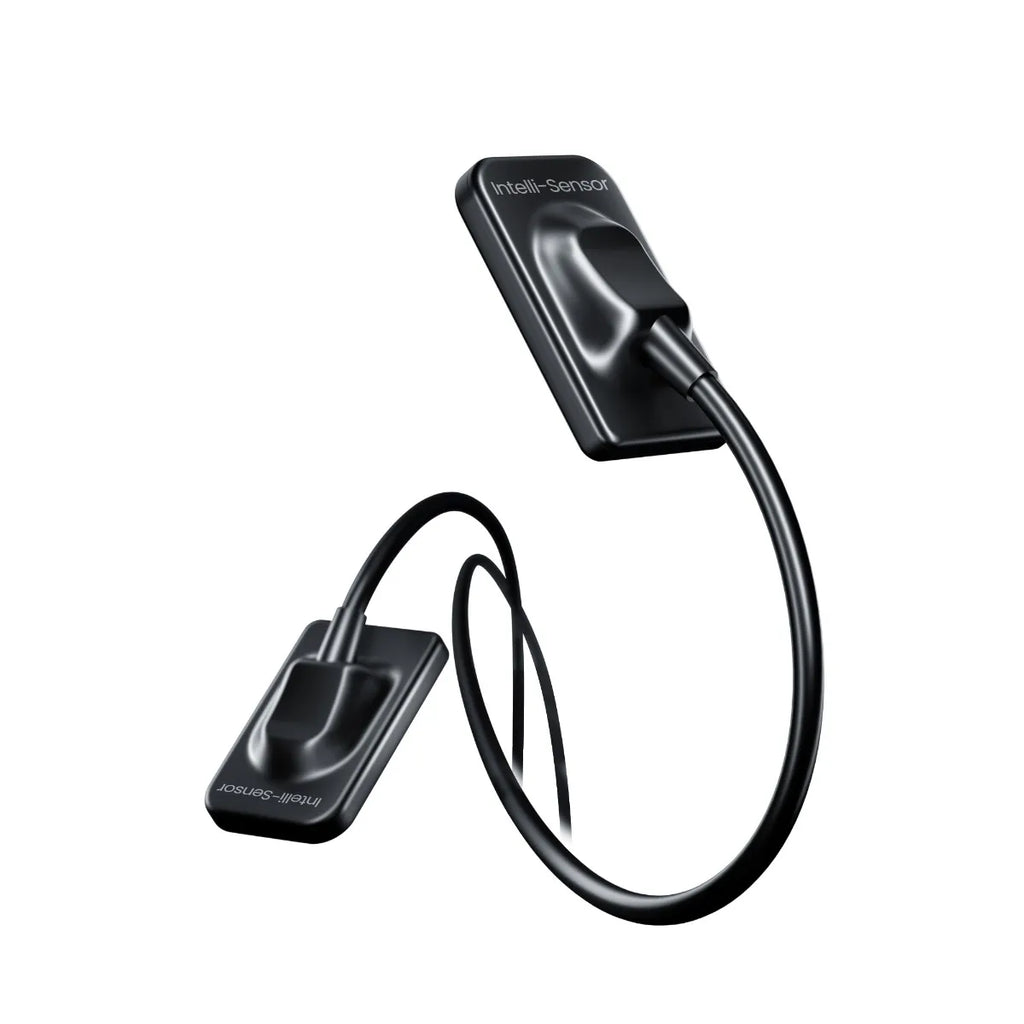

Here are the directions for using the Woodpecker Intelli-Sensor RVG:
System Setup:
- Ensure that the computer meets the specified configuration requirements, including the operating system, processor, memory, USB ports, display board, USB chip, and display resolution.
Software Link: Click Here To Download Woodpecker Intelli-Sensor RVG Software - Run the "Ai-Dental setup.exe" installation program and follow the on-screen instructions to install the image management software system.
Sensor Installation:
- Fix the sensor support frame on a flat wall using two screws.
- When the sensor is not in use, secure it on the support frame.
Imaging Process:
- Turn on the PC with the installed image processing software.
- Start the matching X-ray generator and set the desired photographing parameters.
- Put on a disposable protective sheath on the sensor.
- Place the sensor in the patient's mouth parallel to the long axis of the teeth, ensuring the effective surface of the sensor is close to the teeth.
X-ray Capture:
- Move the X-ray generator to the patient's head, ensuring the generator cone is perpendicular to the sensor's position.
- Press the generator switch to capture the X-ray image.
- After exposure, the imaging software downloads the X-ray image for display on the screen.
Sensor Protective Sheath Usage:
- Wear gloves when placing the disposable sensor protective sheath.
- Replace the protective sheath after each use and dispose of it with other potentially infectious waste.
- Store the used sheaths in a dry and clean place.
Packaging
- 1 x Rvg i Sensor
- 1 x Disposable protective bag
- 100 x Sensor silicone sleeves
- 1 x Sensor fixer
- 1 x U disk
- 2 x Fixing screw
- 2 x Rubber Stopper
- 1 x Qualified certificate
- 1 x Warranty card
- 1 x Instruction manual
- 1 x Packing List
Software Link:Woodpecker Intelli-Sensor RVG Size - 1.5 (Compatible With Windows only)
Additional Info
Country of Origin: Made in PRC
