Preparation:

• Ensure the handpiece is fully charged before use

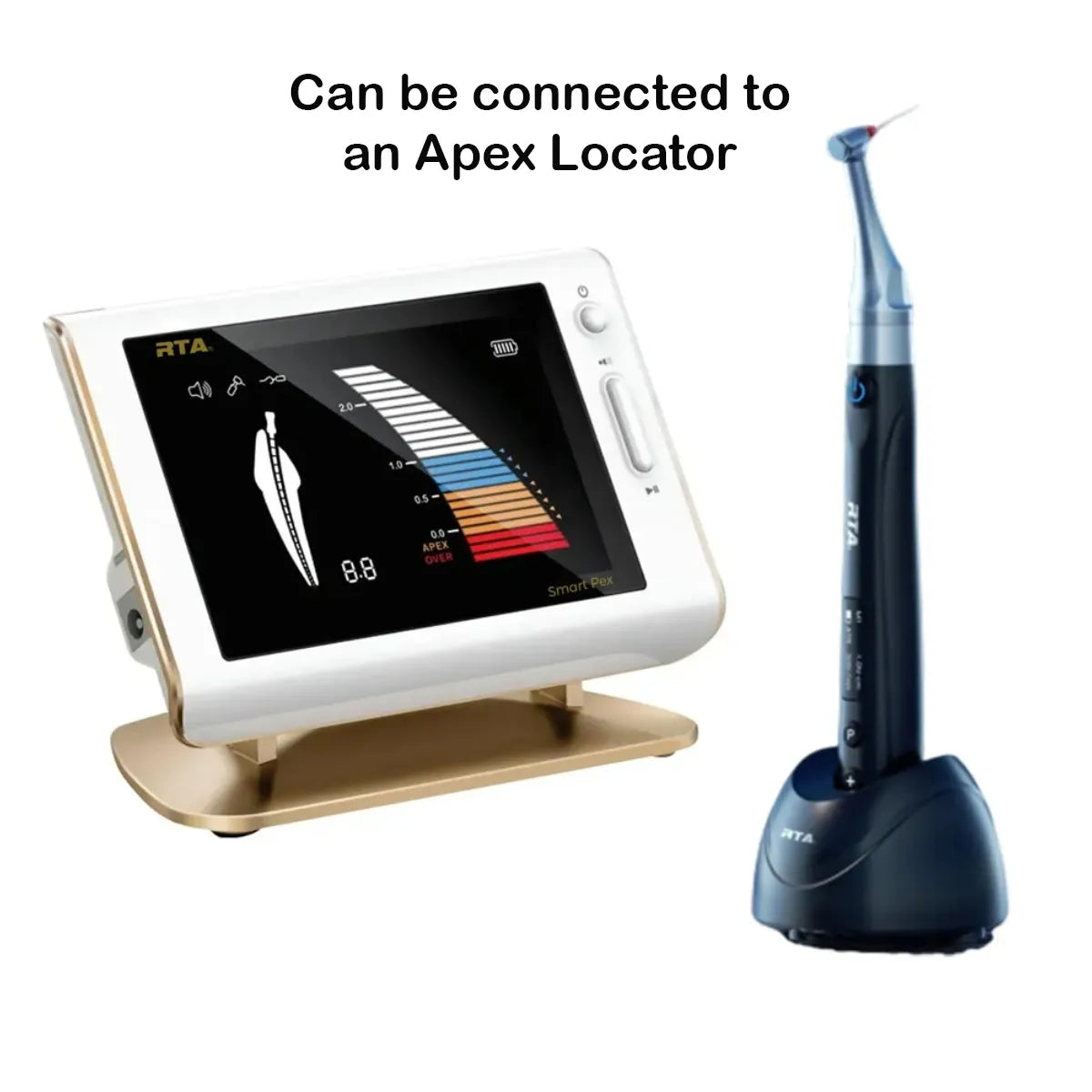

• Connect the handpiece to the Apex Locator if needed

Assembly:

• Attach the 6:1 mini contra-angle to the handpiece securely
• Insert the desired file into the contra-angle head

Power On:

• Press the power button to turn on the handpiece
• Select the desired working mode (Forward, Reverse, Reciprocating, ATR) using the mode selector

Speed and Torque Settings:

• Adjust the speed between 100r/min to 1500r/min as required for the procedure
• Set the torque between 0.4N·cm to 4.2N·cm according to the specific needs of the preparation

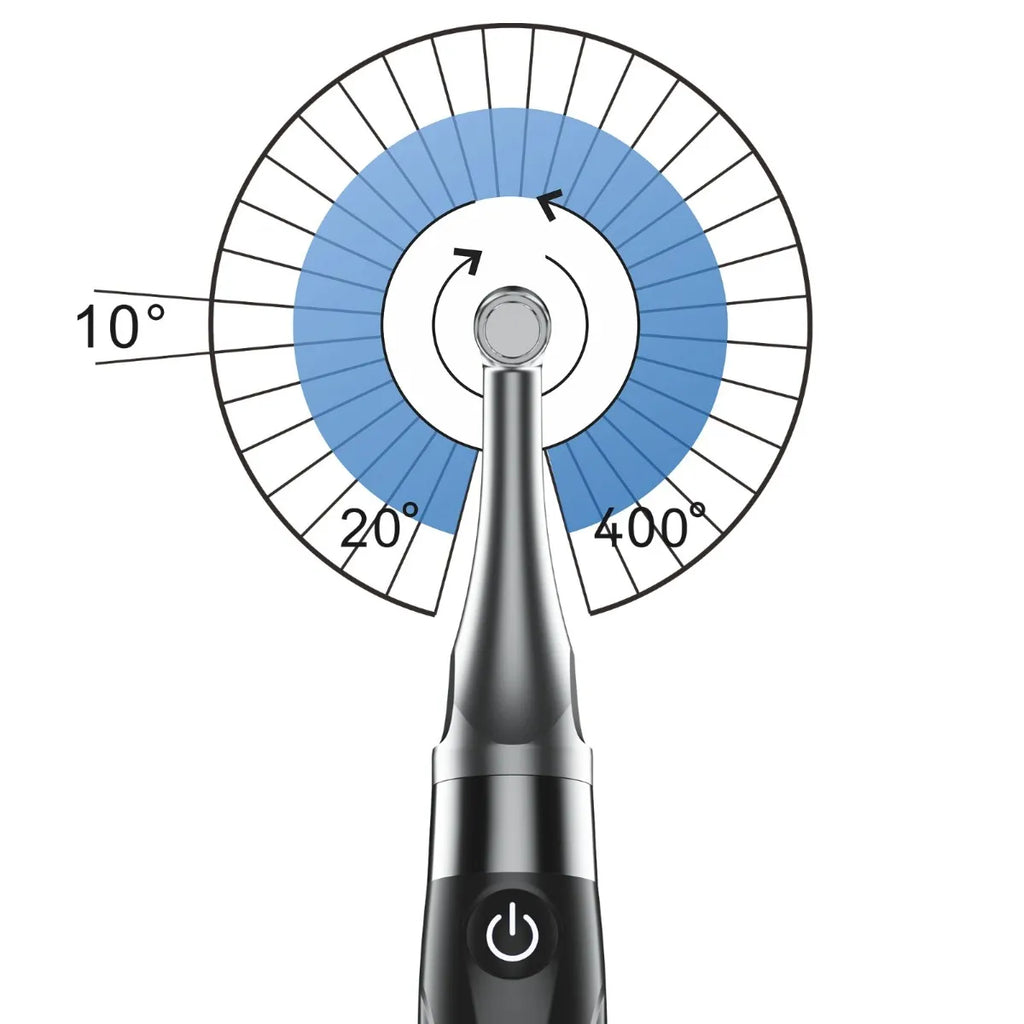

Reciprocating Angle Adjustment:

• Use the adjustment control to set the reciprocating angle within the range of 20° to 400°
• Adjust in 10° intervals for precise control

Operation:

• Position the handpiece at the desired tooth location
• Use the well-balanced design and 360° rotatable contra-angle for better maneuverability and accessibility
• Apply gentle pressure and allow the high torque motor to perform the cutting

Safety:

• Monitor the torque and speed settings to ensure they remain within safe limits
• In ATR mode, the file will reciprocate at the set angle after reaching the preset torque, reducing the risk of instrument separation

Post-Procedure:

• Turn off the handpiece and detach the contra-angle
• Clean and sterilize the handpiece and contra-angle according to the manufacturer's guidelines

Storage:

• Store the handpiece in a clean, dry place
• Ensure the handpiece is fully charged before storing to maintain battery health
