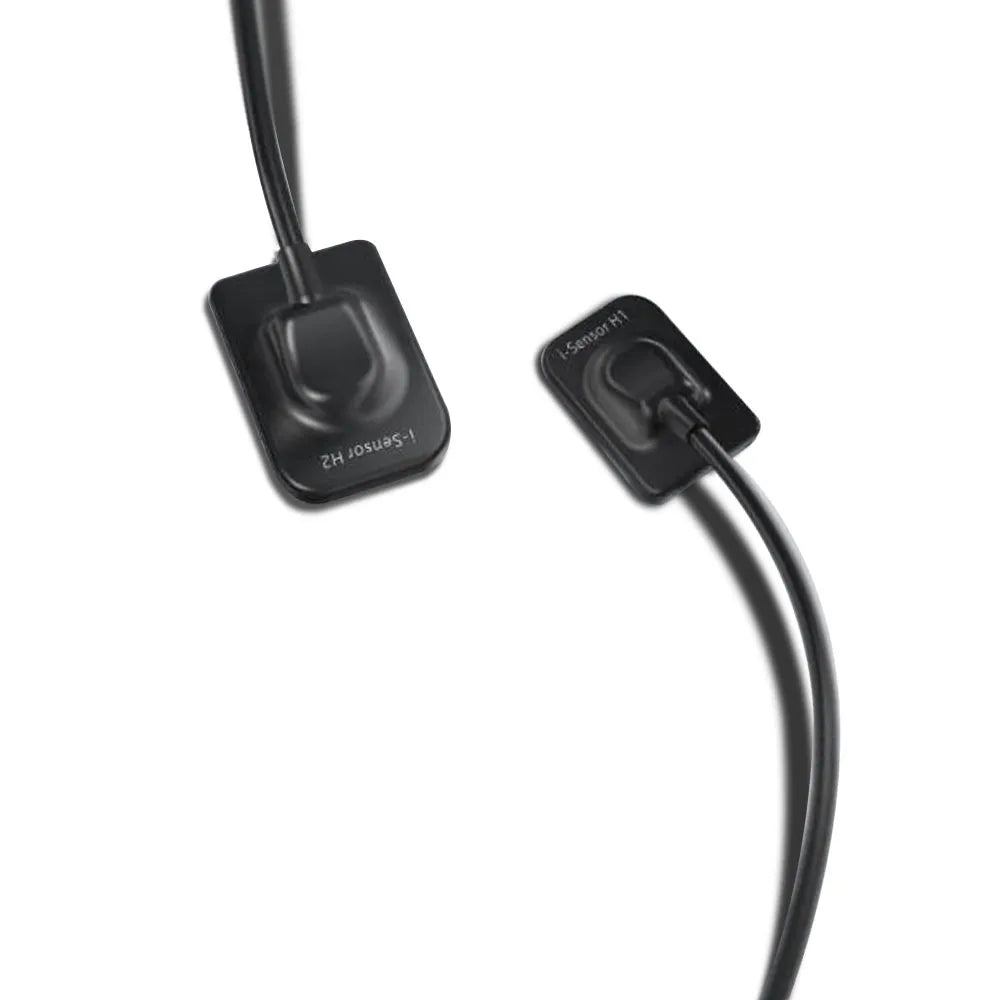

WOODPECKER RVG I-SENSOR SIZE 1

Digital sensor for dental imaging.

4.5
(59)
Rs. 179,000.00
Taxes included. Shipping calculated at checkout.

What's Inside

1 items
FREE Delivery
Jun 30 - Jul 05
Order within
-- h : -- m

HUMAN SKIN LIKE

Same day Shipping

READY TO USE

Beginer Friendly
Key Specifications

Power adapter unit: 5V/USB interface
Effective area: 20*30mm(H1)
Pixel matrix size: 1000*1500(H1)
Pixel size: 20μm
Effective resolution: >8lp/mm

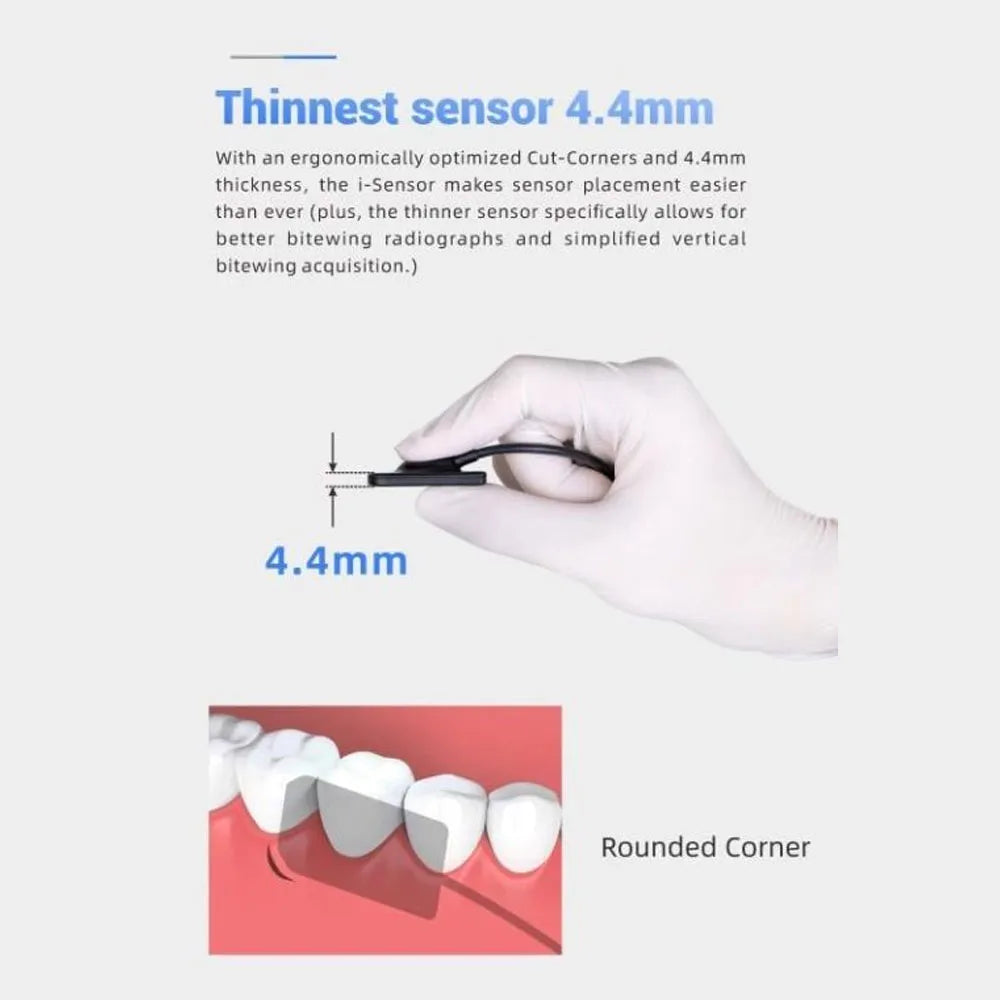

Specifications: 38.5*25*4.4mm(H1)
Weight: 118g(H1)
Detector Technology: APS CMOS
True Resolution: 20lp/mm
Environment temperature: 5℃～ 40℃
Relative humidity: 30% ～ 75% 1.9.3
Atmospheric pressure：70kPa ～ 106kPa
Direction To Use

Installation:

Check System Requirements:

  • Ensure that your computer meets the system requirements specified by the manufacturer. Typically, these include the Windows operating system and specific hardware specifications.

Software Installation:

Connect the Sensor:

  • Connect the Woodpecker RVG I Sensor Size - 1 to your computer using the provided USB cable.

Power On the Sensor:

  • Connect the power adapter unit to the sensor and ensure it's powered on.

Driver Installation:

  • The Windows operating system should automatically detect the sensor. If not, you may need to install drivers provided by Woodpecker.

Calibration (if required):

  • Follow any calibration procedures specified in the user manual or software instructions.

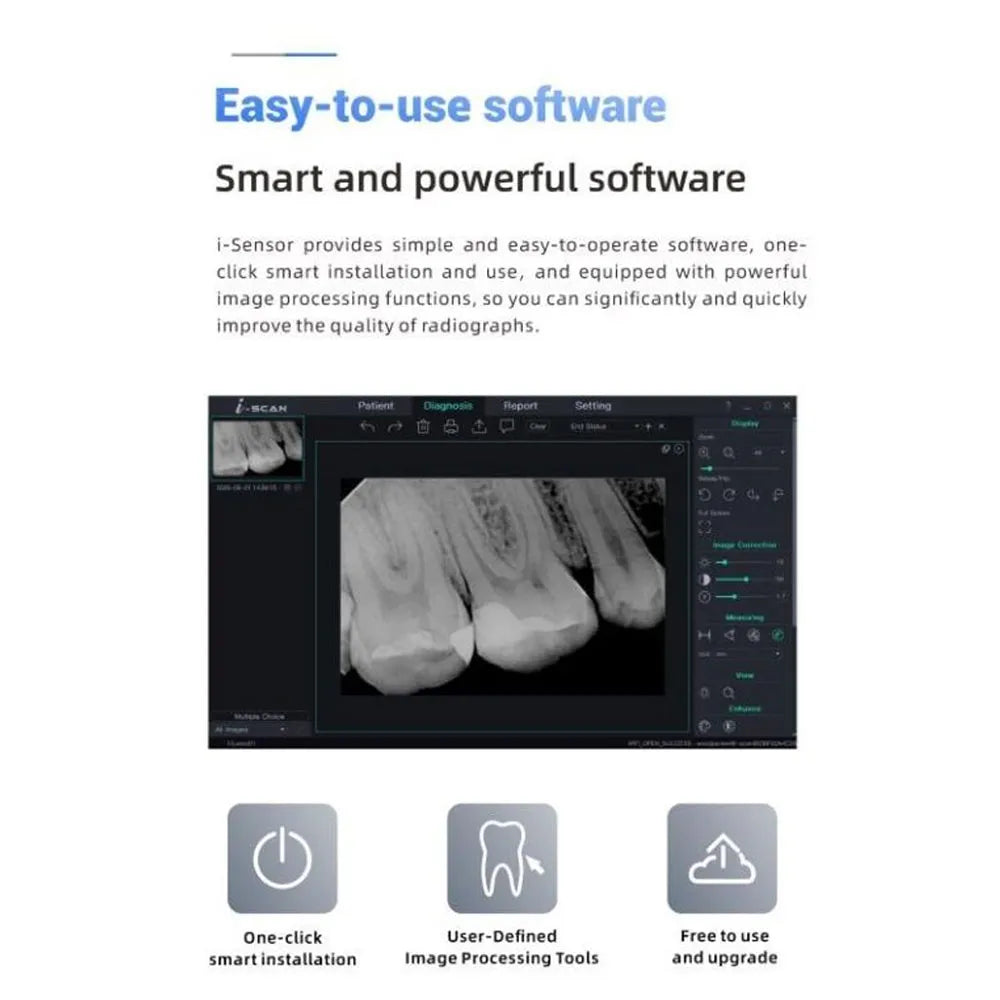

How to Use:

Open Imaging Software:

  • Launch the imaging software on your computer.

Patient Information:

  • Enter or select patient information within the software.

Position the Sensor:

  • Place the Woodpecker RVG i Sensor Size - 1 intraorally in the desired position.

Capture Images:

  • Follow the on-screen instructions to capture intraoral digital radiographs. This typically involves triggering the X-ray exposure while the sensor is in the patient's mouth.

Image Review:

  • Review the captured images immediately within the software. You can zoom in, adjust contrast, and perform other image enhancements.

Save and Store Images:

  • Save the images to the patient's file or the central image repository. The software may provide options for organizing and managing patient data.

Export or Print (if necessary):

  • Export images for referral or consultation purposes. Some systems also allow you to print hard copies if needed.
  • Maintenance:
  • Follow any recommended maintenance procedures for the sensor to ensure its longevity and optimal performance.


Packaging
{"type":"root","children":[{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"1 x Rvg i Sensor "}]},{"type":"list-item","children":[{"type":"text","value":"1 x Disposable protective bag"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Sensor fixer"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Sensor silicone sleeve"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Anti-counterfeiting query label"}]},{"type":"list-item","children":[{"type":"text","value":"1 x U disk"}]},{"type":"list-item","children":[{"type":"text","value":"2 x Fixing screw "}]},{"type":"list-item","children":[{"type":"text","value":"2 x Rubber Stopper"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Qualified certificate"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Warranty card"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Instruction manual"}]},{"type":"list-item","children":[{"type":"text","value":"Download The Software Please Follow The Link: ","bold":true},{"type":"link","url":"https://dentalkart-media.s3.ap-south-1.amazonaws.com/PDF/Ai-Dental-woodpecker-V1.0.26.5-setup+(1).exe","title":null,"target":null,"children":[{"type":"text","value":"https://dentalkart-media.s3.ap-south-1.amazonaws.com/PDF/Ai-Dental-woodpecker-V1.0.26.5-setup+(1).exe","bold":true}]},{"type":"text","value":""}]}]}]}
Additional Info

Country of Origin: PRC
Manufacturer: Woodpecker

Payment Options

COD
Net Banking
UPI
Wallet
Cards
EMI

AeDental Benefits

Free
Shipping
Hassle Free
Cancellation
10 Days
Replacement
100%
Genuine

Detail Title

Detail description goes here

Got Any Doubts?

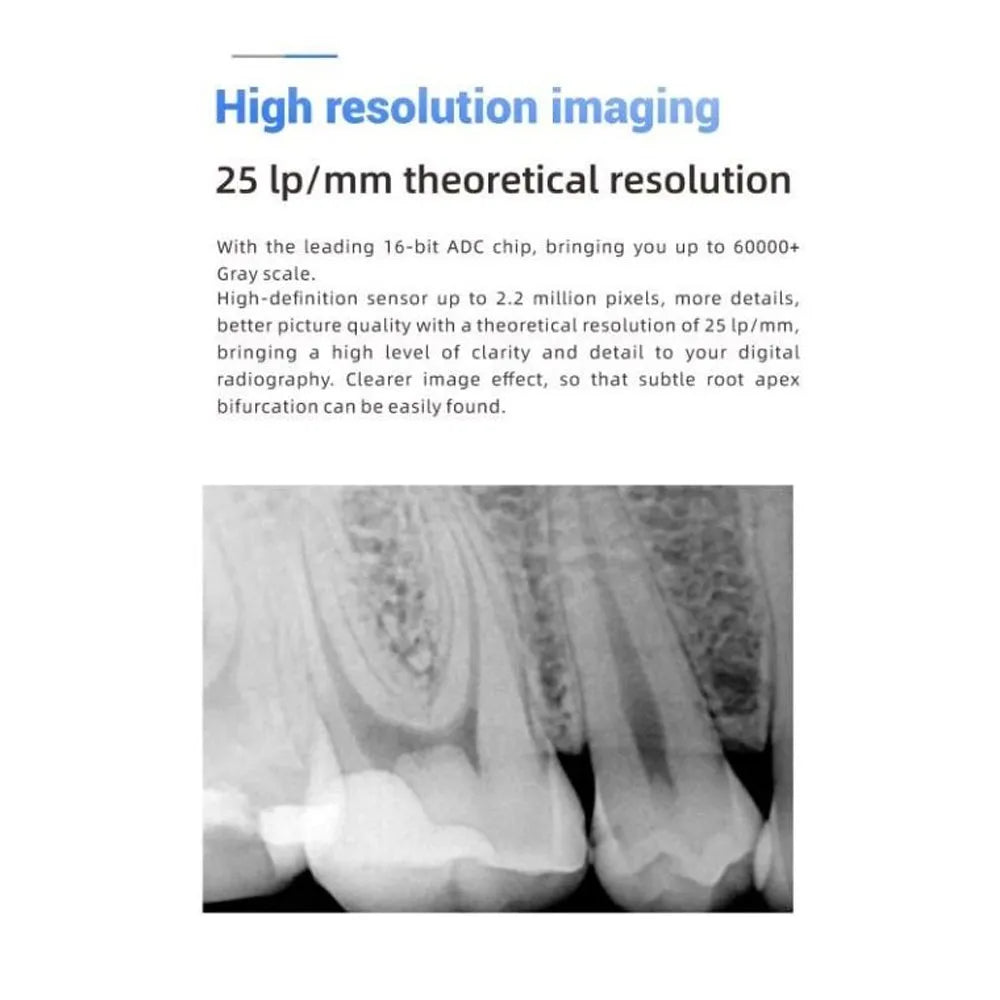

What are the key imaging specifications for this sensor?

This sensor provides a true resolution of 20lp/mm with a pixel size of 20μm. The effective imaging area measures 20 x 30mm.

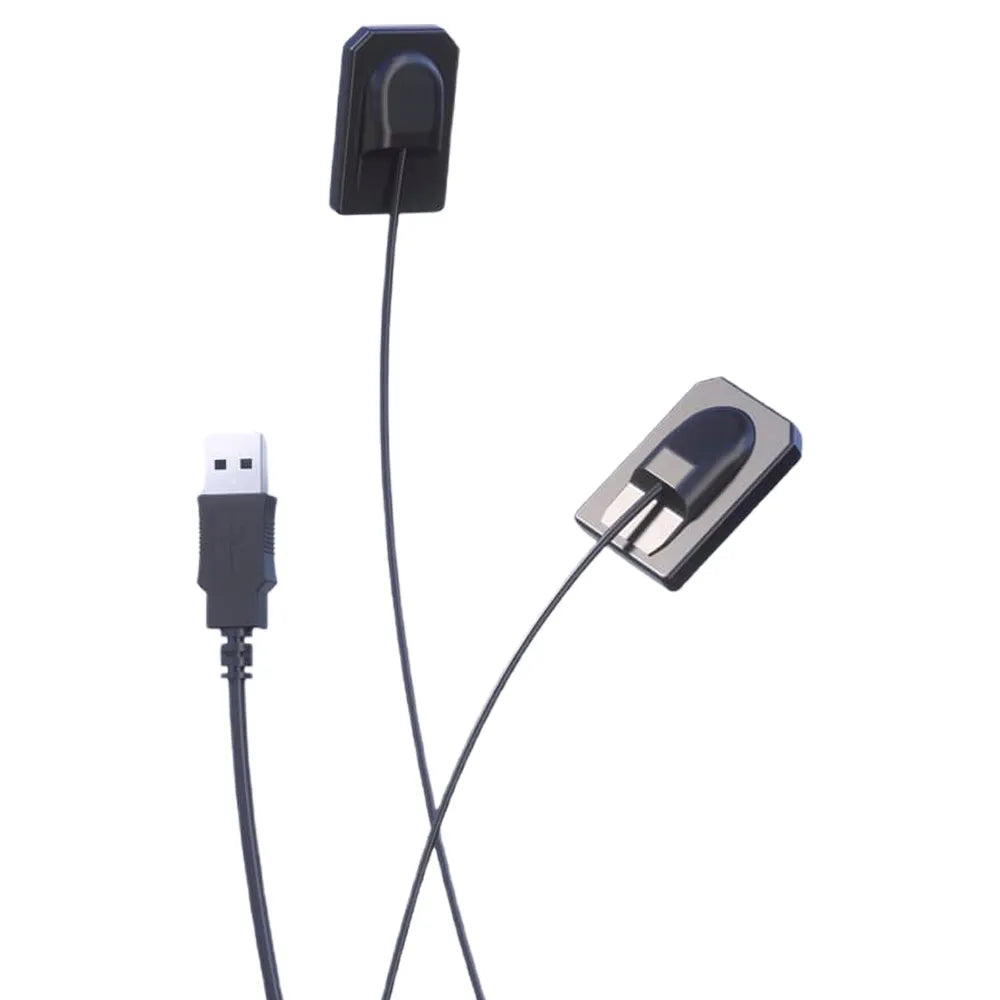

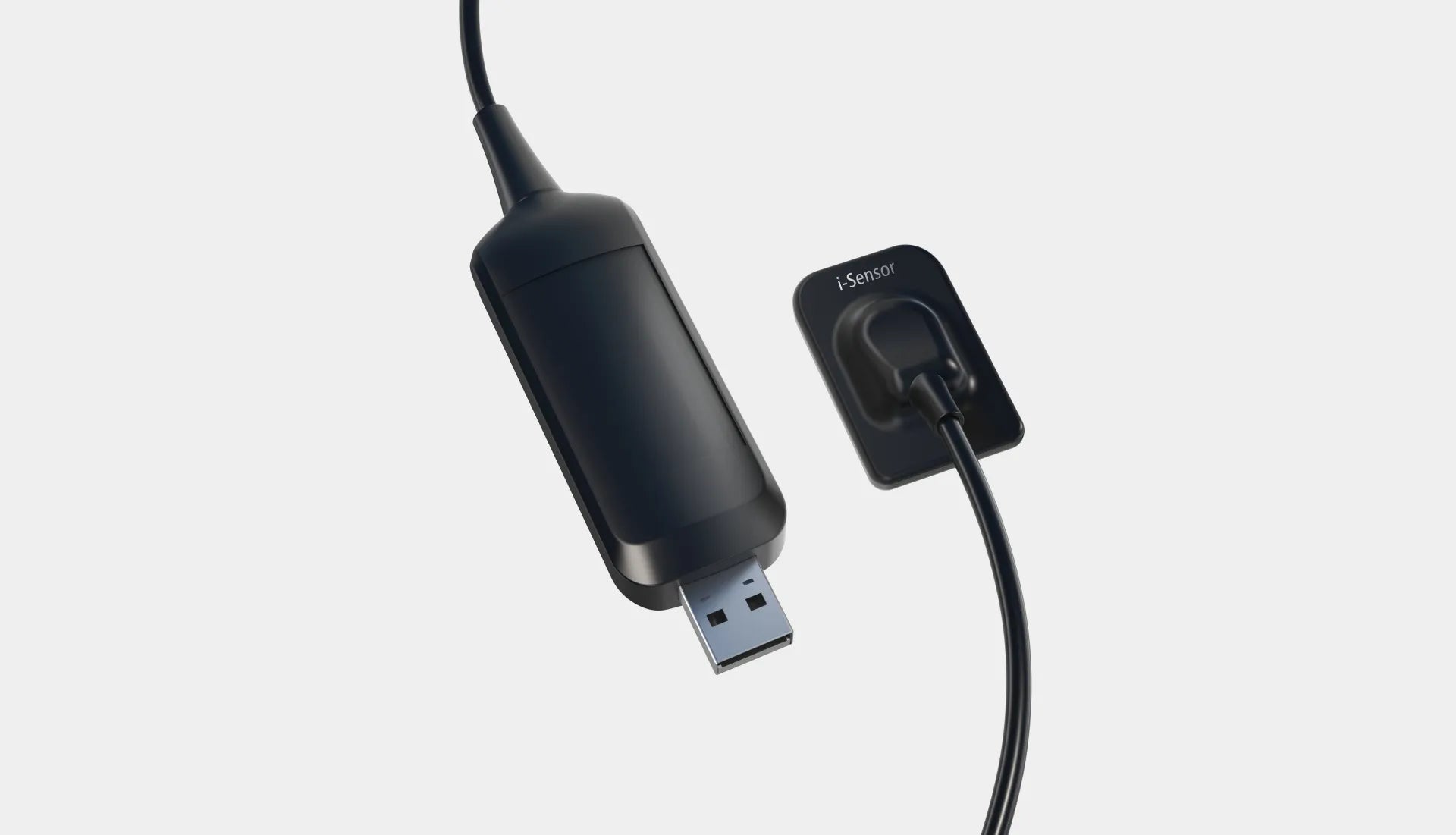

How does the sensor connect to a computer?

The sensor connects directly to a computer through a USB 2.0 interface. This single connection provides both 5V power and data transfer.
What imaging technology does this sensor utilize?

The sensor utilizes APS CMOS detector technology combined with a high-performance scintillator. It also features Automatic Exposure Detection (AED) technology.
What are the recommended environmental conditions for this sensor?

The sensor should be kept in an environment with an ambient temperature between 5℃ and 40℃. The relative humidity should be maintained between 30% and 75%.

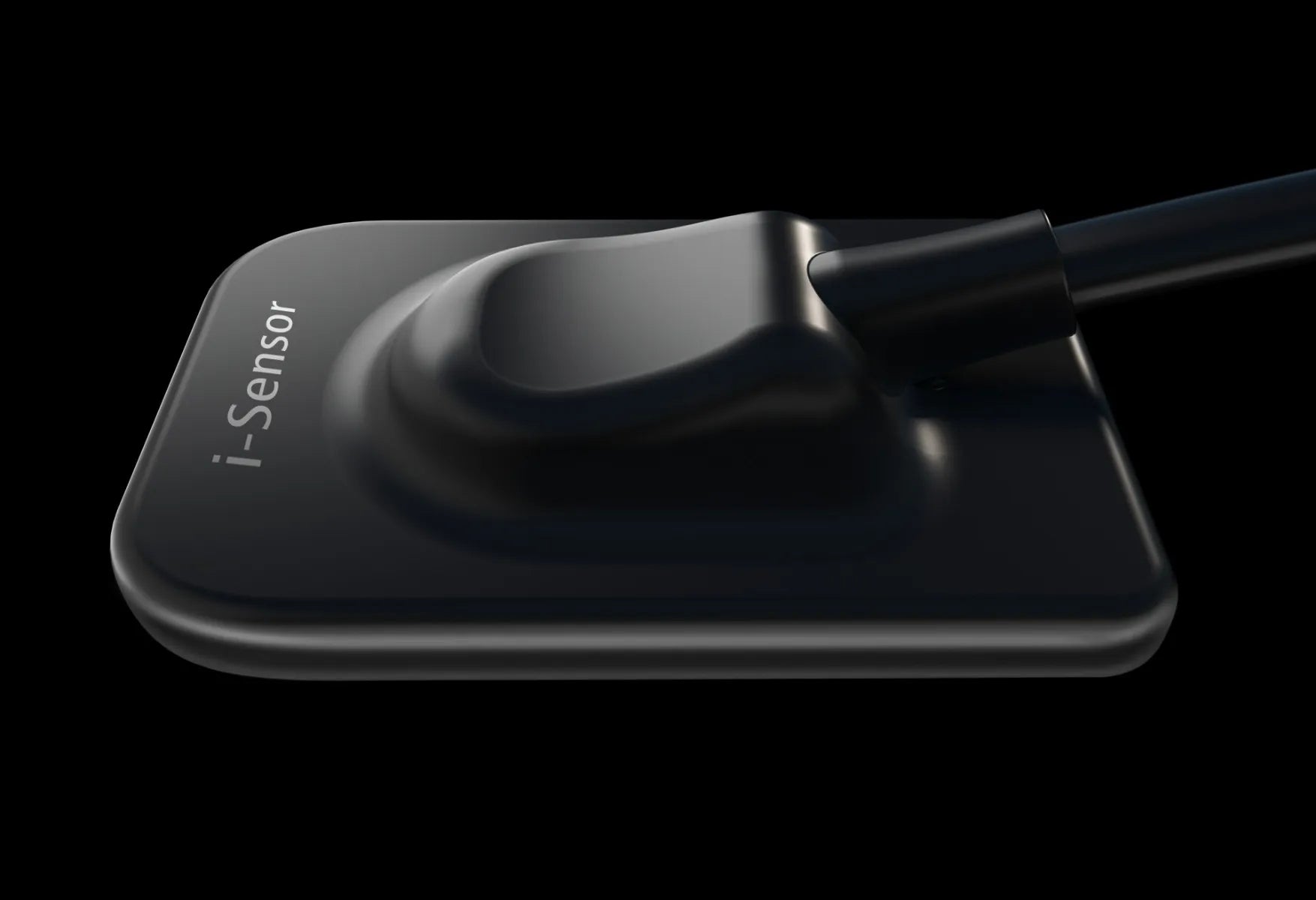

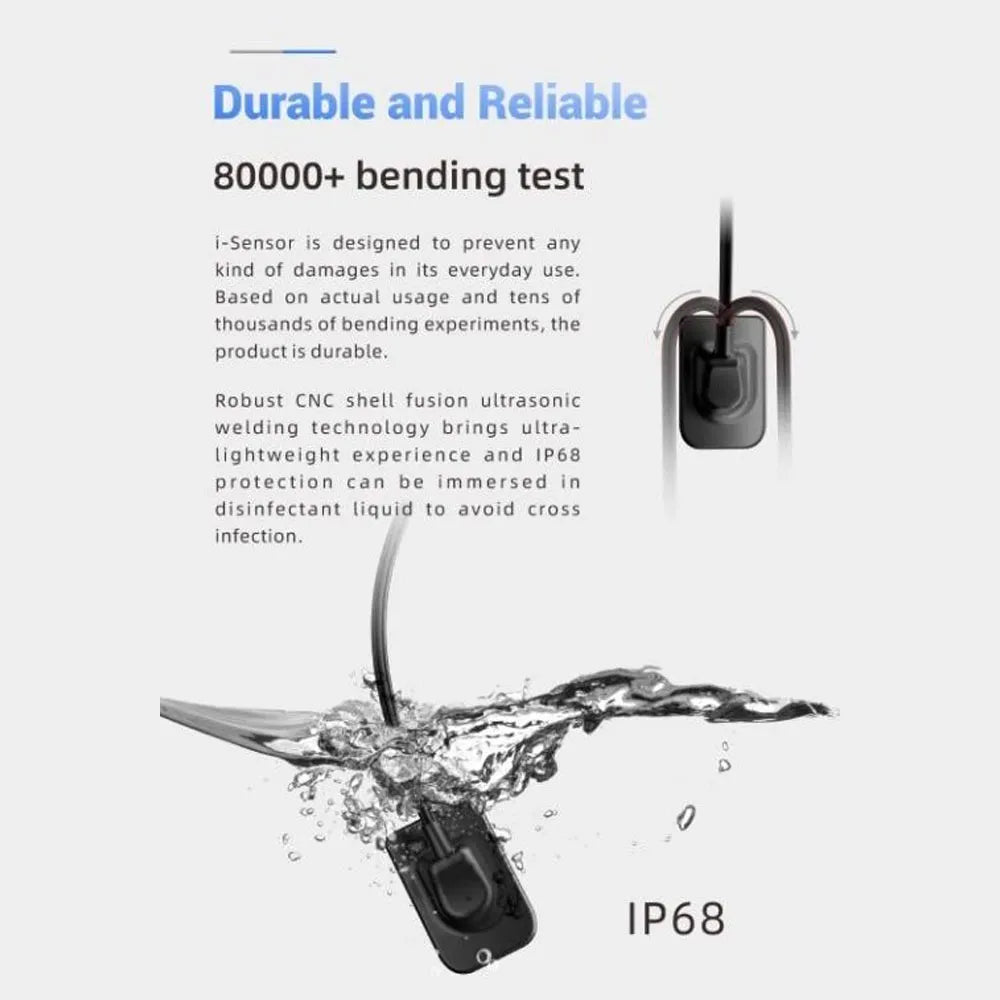

What design features contribute to the sensor's durability?

The sensor is designed to be durable for clinical use, featuring a waterproof body and a flexible cable.
