Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
  • Woodpecker UDS-P Ultrasonic Scaler
Woodpecker UDS-P Ultrasonic Scaler

Efficient Ultrasonic Dental Scaler

4.2
(43)
Rs. 9,449.00 Rs. 20,606.00
Taxes included. Shipping calculated at checkout.
FREE Delivery
Jun 25 - Jun 30
Order within
-- h : -- m

HUMAN SKIN LIKE

Same day Shipping

READY TO USE

Beginer Friendly
Key Specifications

Power Source Output: 110V to 240V~ (50Hz/ 60Hz) 1.2A (max)
Main unit input: 30VDC 1.3A
Output Primary tip Vibration excursion: ≤100 μm
Output half-excursion force: <N
Output tip Vibration frequency: 28kHz± 3kHz
Output Power: 3W to 20W
Main Unit Fuse: 250VT 2.0AL
Water Pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
Main Unit Weight: 0.68kg
Power Source Weight: 0.3Kg
Power source input: 100V to 240V~ 50Hz/60Hz 1.2A (max)
Direction To Use
  • Unpack the equipment and ensure that all parts and accessories are complete as per the packing list.
  • Place the main unit on a stable surface.
  • Turn the water control switch to the maximum position based on the symbol indicated.
  • Insert the plug of the foot switch into its socket.
  • Connect one end of the water pipe to the water entrance of the scaler and the other end to a pure water source.
  • Select a suitable scaling tip and screw it tightly onto the handpiece using the torque wrench. Make sure to connect the handpiece and the cable connector correctly.
  • Insert the plug of the power source into its socket and turn on the power.
  • Switch on the main unit. The scaling indicator and the first five lights of the power regulator should illuminate.
  • Ensure that the scaling tip does not touch the teeth vertically or exert excessive pressure on the tooth surface to avoid damage. Use a light touch and a gentle back-and-forth motion to remove tartar.
  • Adjust the vibration intensity as needed by turning the vibration intensity knob to the middle grade. Use caution not to harm the teeth or the tip.
  • After completing the scaling operation, keep the machine working for 30 seconds with water supply to clean the handpiece and scaling tip.
  • Unscrew the scaling tip and remove the handpiece for sterilization. Do not remove the handpiece while the machine is still running.

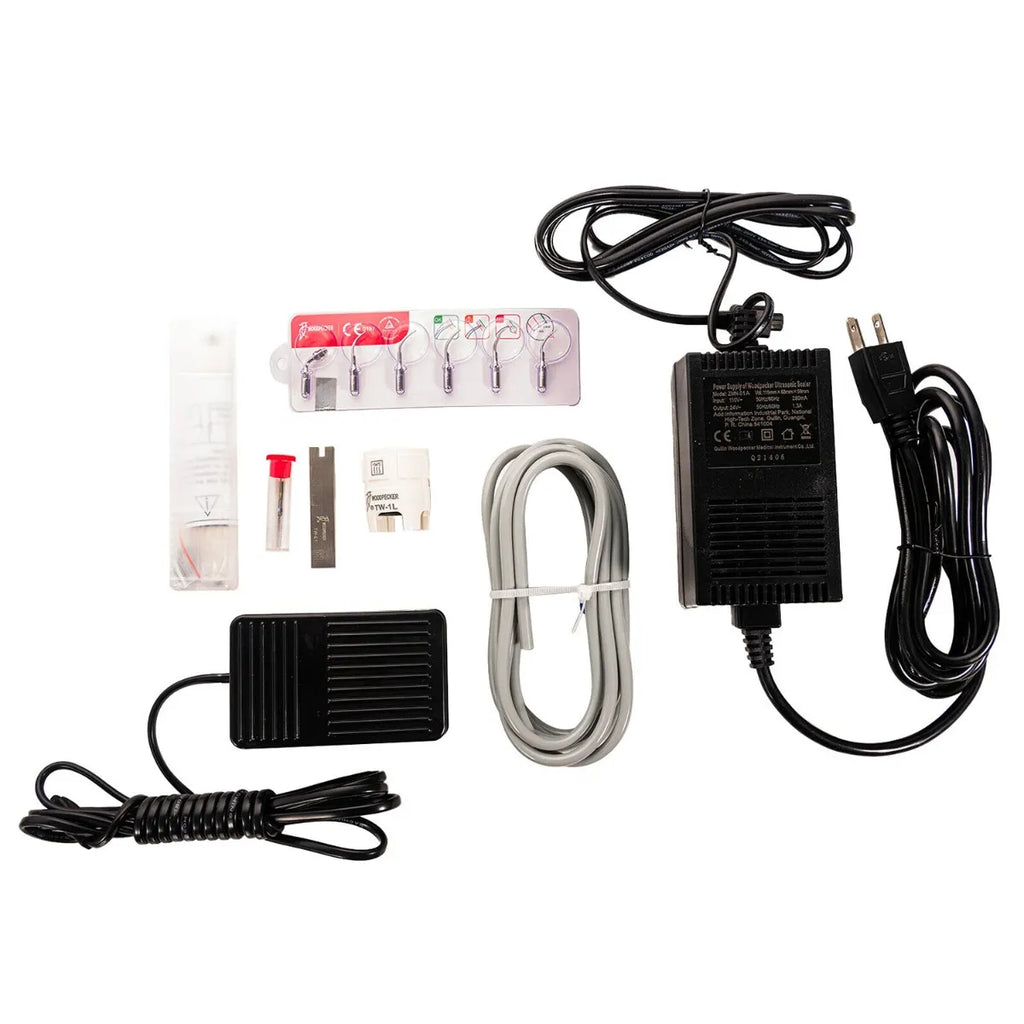

Packaging
{"type":"root","children":[{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"1 x Main unit"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Handpiece"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Foot switch"}]},{"type":"list-item","children":[{"type":"text","value":"6 x Tips"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Adapter"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Torque wrench"}]},{"type":"list-item","children":[{"type":"text","value":"1 x Operation manual "}]}]}]}
Additional Info

Country of Origin: PRC
Manufacturer: Woodpecker

Payment Options

COD
Net Banking
UPI
Wallet
Cards
EMI

AeDental Benefits

Free
Shipping
Hassle Free
Cancellation
10 Days
Replacement
100%
Genuine

Detail Title

Detail description goes here

Got Any Doubts?
What are the clinical applications for this ultrasonic scaler?

This device is designed for scaling, perio, and endo functions. It is used to eliminate calculus, bacterial plaque, and tea stains on the teeth without hurting the gum or enamel.
What is the handpiece made from and what are its key characteristics?

The detachable handpiece is cast from a titanium alloy for durability and contains a ceramic transducer. This design provides high, long-lasting power while generating little heat.
What is the operating frequency and power range of this device?

The unit has an output tip vibration frequency of 28kHz ± 3kHz and features automatic frequency tracking for steady performance. The output power ranges from 3W to 20W.
What is the required water pressure for operation?

The required water pressure is between 0.1bar and 5bar (0.01MPa to 0.5MPa). The unit includes a water control switch for convenient adjustment of the water flow.
What is the mechanism of action for cleaning?

The cleaning action is achieved through cavitation produced from the end of the scaling tip. This process facilitates the cleaning of teeth and helps to kill germs.
